ARC or eARC can pass through an HDMI switch or matrix, but only when that exact device is built and documented to carry the return-audio path. Standard HDMI switching routes source audio and video downstream toward a display. ARC and eARC create a separate return-audio path from the display back to an AVR or soundbar.
A switch or matrix that only handles the first job will not automatically handle the second. Before you buy or troubleshoot one, confirm that the product documentation names the ARC or eARC function, the required port, and any output limits.
ARC Travels Against the Main Signal Direction
Getting TV-returned audio to work starts with understanding which direction the signal actually needs to travel.
The Return Path in Plain English
Most HDMI switching sends source audio and video downstream: a cable box, streaming device, or game console connects to the switch, and the switch forwards that signal to the TV.
ARC and eARC work the opposite way. The TV sends its own audio back upstream, over the same type of HDMI connection, to an AV receiver or soundbar. HDMI's own technical documentation describes eARC as the feature that lets audio from cable, satellite, streaming, or other source devices be sent from the TV to an AVR or sound bar through a single HDMI connection, once it has reached the display.
Any switch or matrix sitting between the TV and the audio system has to carry that reverse trip. A device that was designed only to pick which source reaches the screen has no built-in reason to also carry audio the other way.
What the Conditional Answer Means
Treat ARC/eARC pass-through as a feature the routing device must state, not a feature you can assume. The TV, the switch or matrix, and the AVR or soundbar all need to support the same standard and use the correct labeled ports. ARC and eARC are not interchangeable either: eARC carries higher-bitrate audio formats than ARC, so the whole chain needs to agree on which one it is using.
HDMI Video Flow and ARC/eARC Return Flow
Schematic direction map: ordinary HDMI video travels from sources toward the display, while ARC/eARC returns TV audio toward the soundbar or AVR. The lines are positional, not measurements.
HDMI Video Flow and ARC/eARC Return Flow
The HDMI.org overview of eARC confirms that this feature exists specifically to send TV audio back to an AVR or sound bar over HDMI, and HDMI's own sound guidance notes that the correct labeled port and cable are required for that return path to work at all.
Not Every Switch Supports Audio Return
A standard HDMI switcher picks which source reaches your TV; it does not automatically send audio back the other way. Only a switch whose documentation names an ARC or eARC return function should be treated as capable of it.
| Device type | Documented HDMI audio path | Likely setup result | Choose it when |
|---|---|---|---|
| Standard video-only HDMI switcher | Downstream video only; no stated return-audio feature | Sources switch fine, but the soundbar or AVR gets no TV-returned audio through the switch | You only need to pick between HDMI sources and will get audio another way |
| HDMI switch with ARC support (explicitly documented) | Downstream video plus a stated ARC or eARC return path and port | TV audio can reach the AVR or soundbar through the switch when ports and settings match | The manual names the return function, required port, and any format limits |
HDMI's own guidance is direct about this: HDMI 2.1 features, including advanced audio handling, are optional, and HDMI version labeling does not guarantee the exact feature set a given product supports. An "8K" or "HDMI 2.1" badge tells you nothing about whether ARC or eARC return audio is included.
Our 8K 60Hz HDMI Switch illustrates the distinction. It switches four HDMI sources to one display and pulls audio out through optical or 3.5 mm stereo outputs, which is a separate audio-extraction route rather than native TV-returned ARC or eARC pass-through. If your setup needs true ARC/eARC return through the switch itself, confirm that function is stated in the product's specifications before you buy, rather than assuming it from the extraction feature.
Matrix Routing Makes ARC More Complex
A matrix adds a second variable that a single-output switch does not have: which output the ARC or eARC path is actually tied to.
Why Output Assignment Matters
An HDMI matrix can send different sources to different displays at the same time. Because of that, a documented ARC or eARC return path is often assigned to one specific output rather than the whole unit. The display you plan to use for returned audio has to be the one connected to that designated output. The audio connector carrying the returned sound may also be limited to a specific type, such as optical, rather than every output on the chassis.
A Model-Specific Example
Our ARC-capable matrix documents ARC from a compatible display back to the matrix for extraction, but that function is limited to Output B, and while ARC is active, the returned audio can only be pulled out through the optical connector, not RCA. That is a useful example of why output assignment matters, not a claim that every matrix behaves the same way. Before choosing any matrix for ARC or eARC, check its manual for the exact output and connector the return path uses.
CEC Support Can Affect ARC Activation
CEC, the feature that lets HDMI devices discover and control each other, can influence whether a documented ARC or eARC path actually turns on.
- Treat CEC as a possible activation and device-discovery variable, not a guarantee. Its exact behavior can vary by brand and model, so check CEC and ARC/eARC settings on the connected devices.
- If a switch or matrix documents the required return path but audio is inconsistent, check the CEC and ARC/eARC settings on the TV, the routing device, and the AVR or soundbar individually. Menu names and default settings vary by brand and model.
- After adjusting settings, retest the same designated port and output rather than assuming the fix worked without confirmation. Our ARC and CEC basics article covers how these two features interact if you want more background before you start.
- CEC troubleshooting only makes sense once you already know the hardware supports the return path you need; it cannot substitute for that documentation.
Audio Extraction Offers an Alternative Path
When native ARC or eARC pass-through is unavailable, an extractor that explicitly supports ARC or eARC input from the TV may provide a separate audio path. A standard source-side HDMI audio extractor does not automatically extract TV-returned audio.
Choose the Path That Matches the Audio Endpoint
Use native ARC or eARC when the TV-returned audio has to travel over HDMI to a soundbar or AVR that expects that connection and format. Use audio extraction instead when your soundbar or receiver accepts optical, RCA, or another documented output, and the extractor's supported formats match what you need. An ARC splitter for HDMI or HDMI ARC adapter is worth considering only when the documentation for its exact input, output, format, and return path matches your specific routing gap, not just its category name.
A Directly Relevant J-Tech Digital Option

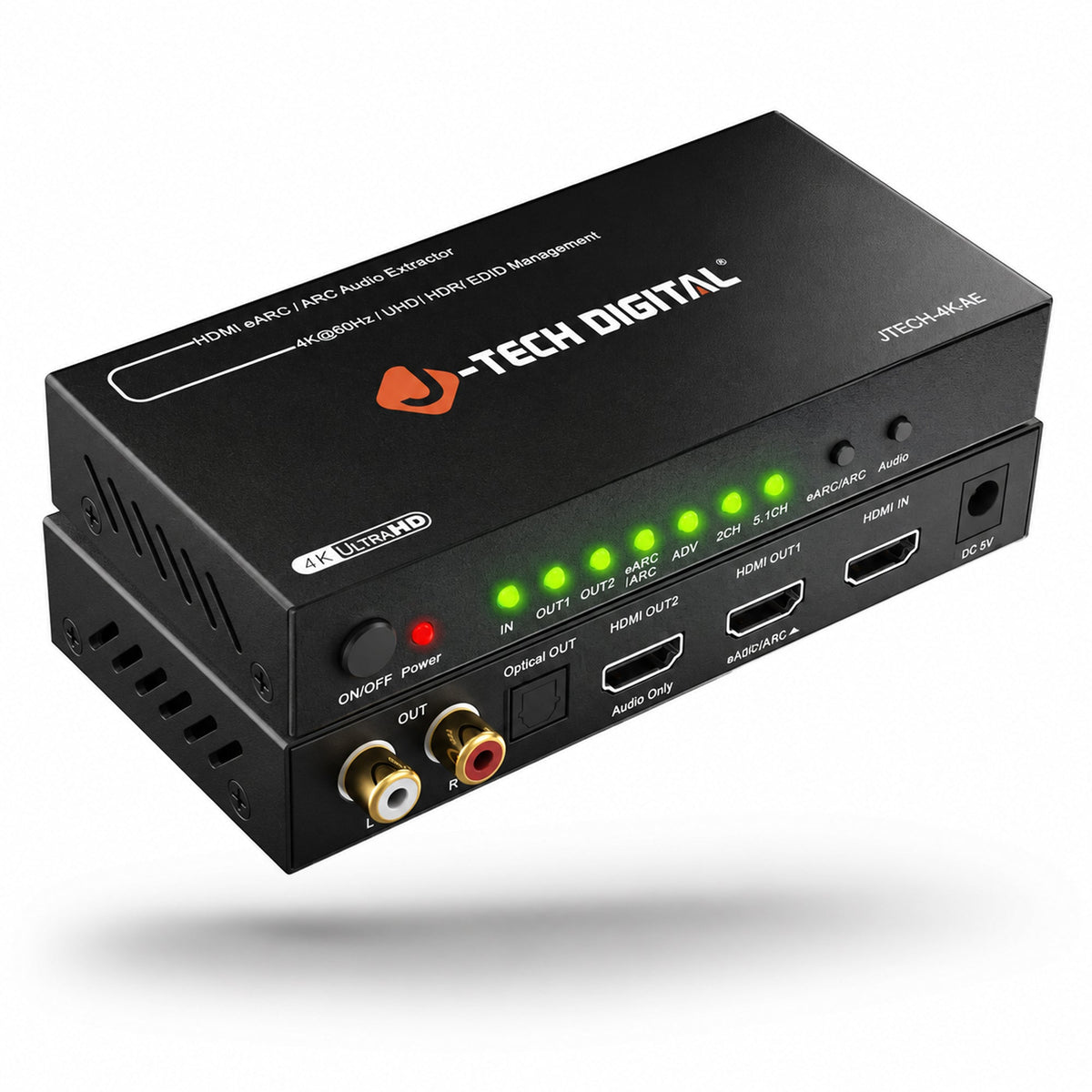

Our 4K 60Hz HDMI eARC/ARC Audio Extractor documents ARC and eARC extraction from a compatible display, with audio available through a second HDMI output, optical SPDIF, or RCA L/R. Its specifications list Dolby HD, DTS HD, Dolby Atmos, Dolby AC-3, DTS, and LPCM for the HDMI input/output path. The optical output is listed for LPCM 2.0, DTS, and Dolby AC-3, while RCA L/R provides a separate analog output.
If your current switch or matrix does not document native ARC/eARC return but your display does support ARC or eARC, an extractor like this can give you a working audio path, provided your soundbar or AVR accepts the connector and format it outputs. Check those two things before you buy.
Check Every Port Before Installation
Once you know which audio route you want, a short verification sequence catches most setup problems before you start swapping hardware.
- Map the desired route: identify the source devices, the display, the audio endpoint, and whether you need native ARC/eARC return or a separate extraction path.
- Match the labeled ports: confirm the TV's labeled ARC or eARC port, the switch or matrix's documented return-capable output, and the AVR or soundbar's matching input. HDMI's sound guidance stresses that the display's labeled ARC/eARC port and any required TV setting must be used for the path to work.
- Check settings and CEC: enable ARC/eARC and CEC on each exact device if the manual calls for it, since defaults vary by brand.
- Select and test a cable suited to the complete system's video and audio requirements, then confirm audio arrives through the intended path.
If the exact product documentation for your switch or matrix never states the required return path, stop treating it as ARC/eARC-capable. Move to a documented extraction route or a different routing device instead of assuming the missing audio is a setup mistake.
FAQ about HDMI ARC and eARC
Can ARC or eARC Pass Through an HDMI Switch or Matrix?
Only when that specific switch or matrix documents the ARC or eARC return path, the required port, and any output limits. Ordinary video switching alone does not include this feature, so check the manual before assuming compatibility.
Why Does Audio Keep Cutting Out?
Intermittent audio can result from an undocumented or unsupported return path, the wrong output, a CEC setting, a mismatched port, or a faulty cable. Confirm the designated output and connector, check CEC and ARC/eARC settings on each device, then verify the labeled ports and cable before assuming the hardware itself is at fault.
Do I Need a New HDMI Cable?
Not automatically. Match a certified cable tier to your system's video and feature requirements rather than replacing the cable by default. HDMI's certification guidance explains that certified Premium High Speed and Ultra High Speed cable categories support different system requirements, so the right choice depends on what your setup actually needs.
Is Audio Extraction the Same as ARC or eARC Pass-Through?
No. Extraction pulls audio out through a separate documented output, such as optical or RCA, while native ARC or eARC sends audio back over HDMI itself. Check your soundbar or AVR's input and required format before treating an extractor as a substitute for native pass-through.
