Digital Signage Hardware Guide: What You Need for a Reliable Setup

A screen may show a simple menu, promotion, directory, or company update, but stable playback depends on the equipment behind it. The player must process the content, the display must remain readable in its environment, and the signal path must carry the selected video format. Power, mounting, networking, and remote support also affect daily operation.

A carefully planned digital signage hardware setup reduces black screens, playback errors, repeat service visits, and unnecessary equipment purchases. Each component should match the content workload, viewing conditions, operating schedule, and support requirements.

What Hardware Is Required for Digital Signage?

Every installation needs a content source, playback method, display, power supply, and reliable signal path. Network access is required for cloud publishing, remote monitoring, live data, or centralized device control. Larger deployments may also need extenders, matrix switches, network switches, protected enclosures, and backup power.

A dedicated digital signage media player may sit behind the screen, inside a kiosk, or in a central equipment rack. Some commercial displays contain an integrated system-on-chip player. External players can simplify replacement, performance upgrades, and software changes.

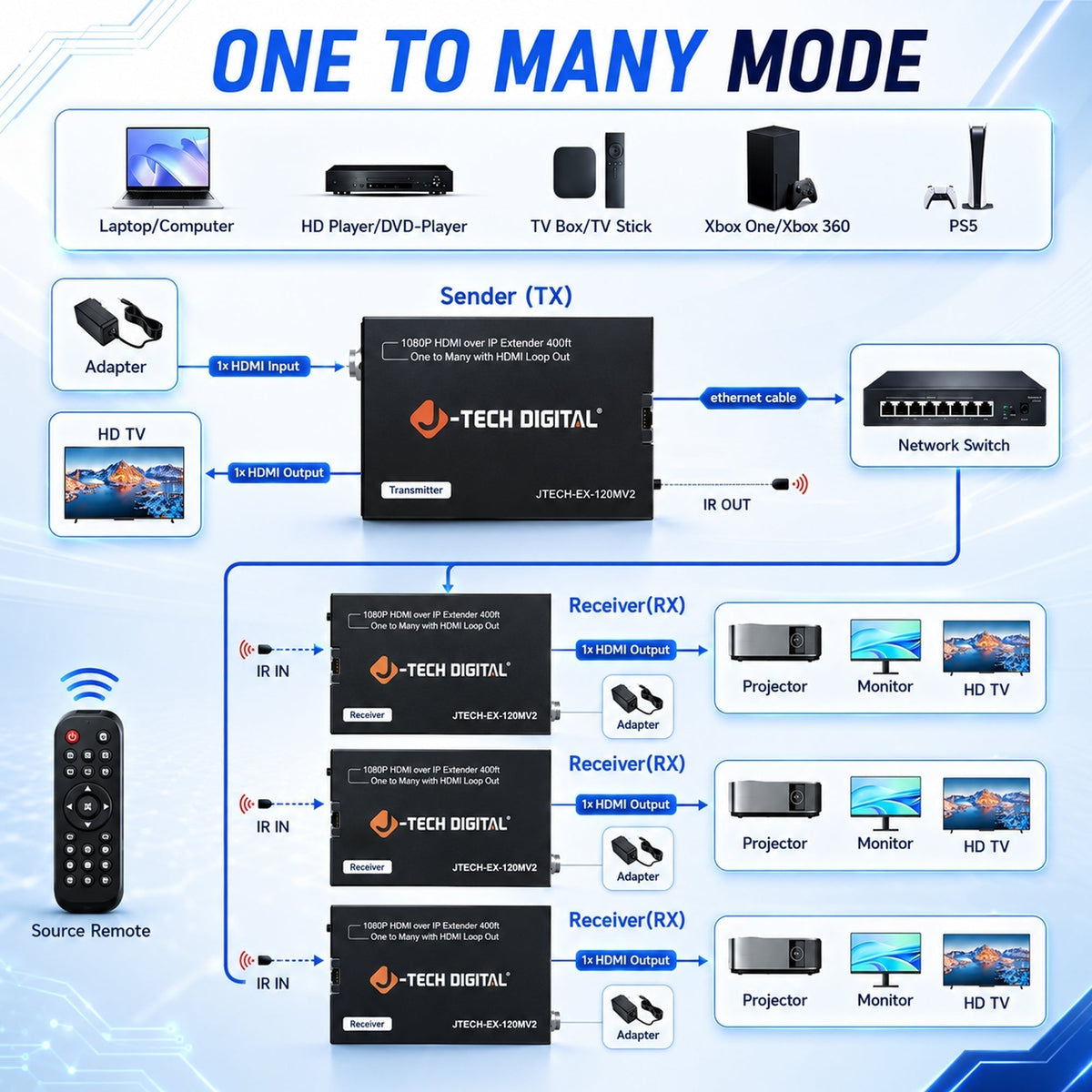

Signal distribution equipment becomes necessary when the source is far from the display or several endpoints share an input. A splitter copies one source, a matrix routes several sources, an extender covers a longer cable run, and AV-over-IP carries video through a compatible data network.

For digital signage systems that need flexible routing across multiple screens, the Zenty IP300 Series provides a scalable AV-over-IP option. It distributes video up to 4K at 30Hz with 4:2:0 chroma over a 1GbE network and supports matrix routing, independent audio routing, 4K/2K scaling, and video wall layouts up to 16 × 16. This makes it more suitable for an expanding multi-screen deployment than a fixed point-to-point extender.

Build an Equipment Map

Before purchasing digital signage hardware, record:

• Screen location, orientation, and mounting height
• Player location and service access
• Available power and network connections
• Cable type and estimated run length
• Required resolution, refresh rate, and audio format
• Ventilation and operating temperature
• Exposure to dust, moisture, glare, or direct sunlight

The complete signal path must support the required output format, or a compatible scaler must convert it. Format checks should cover resolution, refresh rate, color depth, chroma format, HDR support, audio format, and HDCP version.

Plan the Signal Distance

Avoid applying one maximum distance to every HDMI cable. The HDMI specification does not set a universal length limit because performance depends on cable construction, signal bandwidth, installation conditions, and the required video format.

Use these planning rules:

• Select a certified cable category that supports the required bandwidth.
• Check that the exact cable model and length have been tested for the target format.
• Test the installed run at the full resolution, refresh rate, color format, and audio setting.
• Use an active or optical HDMI cable, or extender when a passive run cannot pass the required signal reliably.
• Keep power cables and sources of electrical interference away from signal cabling where practical.

HDBaseT can provide a clearer distance framework. Common implementations support 1080p over Category cable up to 100 meters, or 328 feet. Many 4K systems are rated for approximately 70 meters, or 230 feet, while selected HDBaseT equipment and suitable Cat6a cabling can support 4K over 100 meters. Always use the distance stated for the exact transmitter, receiver, cable type, and video format.

Follow a Practical Setup Sequence

1. Define the content, screen count, viewing distance, and operating hours.
2. Select the playback platform and commercial display.
3. Map the signal path, network connection, mounting point, and power source.
4. Install mounts, enclosures, cables, and ventilation clearances.
5. Connect the player, display, network, and signal devices.
6. Configure the CMS, player settings, display controls, and monitoring.
7. Test playback, power recovery, network loss, audio, and remote commands.

This sequence catches design problems before they become expensive installation changes.

How Do Media Players Work?

A media player connects the content management platform to the screen. It receives files, stores scheduled media, renders layouts, and sends video and audio to the display. Its performance depends on processing power, memory, storage, operating system support, and output capability.

From Content Upload to Screen Output

A typical workflow has five stages:

1. A user uploads images, videos, webpages, or data feeds to a CMS.
2. The CMS assigns the content to players, groups, and schedules.
3. Each player downloads the required files through Ethernet or Wi-Fi.
4. The player stores and renders the content at the scheduled time.
5. HDMI or another supported connection carries the signal to the display.

Many commercial players cache scheduled files locally. Existing content may continue during a network outage, while live feeds, monitoring, and new downloads pause. Offline behavior varies by player and CMS, so it should be tested before launch.

Select Player Performance for the Workload

The required digital signage player hardware depends on the content. Static images and basic menu boards need less processing capacity than 4K video, interactive applications, HTML content, or layouts containing several live data regions.

Check:

• Maximum output resolution and refresh rate
• Supported video codecs and image formats
• RAM and internal storage
• Number of video outputs
• Ethernet and Wi-Fi support
• CMS and operating system compatibility
• Remote reboot and monitoring functions
• Firmware and security update policy

Digital signage media player hardware must fit the complete signal chain. A player marked as 4K-capable cannot guarantee 4K at the screen if a cable, switcher, extender, or display accepts only a lower format.

Configure EDID Carefully

Extended Display Identification Data (EDID) tells the source which video and audio formats the connected display supports. Splitters, matrices, and extenders may offer Auto, Copy, fixed, or user-defined EDID modes.

A general EDID setup process is:

1. Connect the source directly to a known working display and confirm the intended resolution and audio format.
2. Identify the formats supported by every display and signal device in the final chain.
3. Select Auto or Copy mode if all endpoints have compatible capabilities.
4. Copy the EDID from the least capable display when one shared signal must work across mixed screens.
5. Use a fixed EDID profile when the system requires a controlled output such as 1080p stereo or 4K60 stereo.
6. Use per-output scaling if the distribution hardware supports displays with different resolutions.
7. Reboot or reconnect the source after changing EDID so it reads the new information.
8. Verify video, audio, HDCP content, and power recovery.

Menu names and button sequences vary by device, so installers should follow the relevant manual. If the image disappears after an EDID change, return to a lower common resolution and basic stereo audio, confirm stable playback, then raise the settings one item at a time.

What Displays Are Best for Commercial Signage?

The display should match the environment, content, viewing distance, operating schedule, and mounting position. Screen size matters, but brightness, duty cycle, glare control, orientation, remote management, and service access often have a greater effect on daily reliability.

Evaluate the Main Display Requirements

Operating hours: Confirm the manufacturer’s rated schedule, such as 16/7 or 24/7. A screen used only during store hours has different thermal and durability requirements from one running continuously.

Brightness: Compare the display against the actual ambient light. Indoor signs in controlled spaces need much less brightness than storefront windows or outdoor screens exposed to daylight.

Orientation: Confirm approval for landscape or portrait installation. Cooling systems and panel construction may restrict certain positions.

Glare and viewing angle: Anti-glare surfaces improve readability under bright lighting. Wide viewing angles help in corridors, lobbies, and open public spaces.

Resolution: Full HD can serve distant viewing and simple layouts. 4K provides additional detail for large screens, close viewing, fine text, and detailed imagery.

Control connections: LAN, RS-232, and HDMI-CEC may support scheduled power, input changes, status checks, and centralized control.

Bezel width: Video walls also require alignment, bezel compensation, synchronized output, and panel calibration.

Use Brightness Figures as a Screening Tool

Commercial product ranges provide a useful reference:

These figures are not universal pass-or-fail limits. Glass reflections, window direction, seasonal sunlight, content colors, automatic dimming, heat management, and local regulations can change the requirement. Review the screen at the intended location before final approval.

A consumer television may suit a small installation with limited daily use, but it can restrict portrait mounting, remote management, continuous operation, and commercial warranty coverage. Confirm those conditions before using one in a permanent business environment.

How Do You Manage Content Across Multiple Locations?

Multi-location signage depends on centralized software, consistent player configuration, dependable networking, and controlled user permissions. Central teams need visibility into device health and campaign delivery, while local users may require limited access to site-specific content.

Create a Repeatable Site Standard

Use consistent player models, storage capacity, cabling, mounts, power protection, and network settings across similar locations. Standardization reduces training requirements, spare-parts complexity, and diagnosis time.

Maintain an asset record for each installation:

• Site and screen location
• Player and display model
• Serial number and network address
• CMS group and installation date
• Warranty and support details
• Firmware and software version

A cloud-based CMS can organize players by region, store, department, or screen purpose. Central users can publish company-wide content, while approved local users update store hours, events, or regional messages. Role-based access reduces accidental changes.

Estimate Content Download Bandwidth

Large campaigns can overload a connection when many players download new files at the same time. Use this basic calculation:

Required average bandwidth in Mbps = File size in GB × 8,000 ÷ Download window in seconds

For example, a 2 GB campaign that must download within 10 minutes requires:

2 × 8,000 ÷ 600 = 26.7 Mbps

Allowing approximately 20 percent operational headroom raises the planning figure to about:

26.7 × 1.2 = 32 Mbps

If ten players at one site download separate copies simultaneously, the theoretical requirement rises to about 267 Mbps before headroom. A CMS that staggers downloads or uses local content distribution can reduce the peak.

Wired Ethernet usually provides the most consistent connection. Wi-Fi may suit sites where cabling is impractical, but signal strength, interference, access-point capacity, and credential changes can interrupt delivery.

Protect each player and management account with unique credentials, restricted permissions, controlled updates, and network segmentation where appropriate. Remote monitoring should report connectivity, storage use, software version, playback errors, and recent check-in time.

Store a fallback playlist on each player so useful content remains available during a temporary internet, CMS, or download failure.

What Maintenance Is Required?

A digital signage hardware maintenance plan should cover physical equipment, software, content, networking, and recovery procedures. The frequency should reflect operating hours, site importance, environmental exposure, and service requirements.

Use a Baseline Maintenance Schedule

Weekly Remote Review

• Confirm that every player has checked in
• Review playback and download errors
• Check storage capacity and active schedules
• Investigate repeated restarts or temperature warnings

Monthly Site Inspection

• Check mounts, enclosures, and cable strain
• Remove dust from vents and equipment areas
• Inspect HDMI and Ethernet connections
• Review image brightness, color, and orientation
• Test remote restart and display control

Quarterly System Review

• Apply approved firmware and software updates
• Remove expired files and unused accounts
• Test fallback playlists
• Review security settings and asset records
• Confirm that spare devices remain operational

Test updates on one player before a wide rollout. New software can affect codecs, output formats, control functions, or compatibility. Schedule changes during a low-traffic period and keep a documented recovery procedure.

Verify the System Before Launch

A final acceptance test should include:

• Cold boot after complete power loss
• Automatic playback recovery
• Network disconnection and reconnection
• Correct resolution and refresh rate
• Audio level and synchronization
• CMS schedule changes
• Remote player reboot
• Display power control
• Fallback content
• Protected-content playback when applicable

Keep a preconfigured spare player, power adapters, cables, and critical signal devices for larger networks. Load the required software, credentials, and CMS assignment before the spare enters storage.

FAQ about Digital Signage Hardware

Q1. Does Every Digital Signage Screen Need a Media Player?

Every screen needs a playback source, but the player can be external or built into the display. An integrated system-on-chip reduces visible hardware. An external player can simplify replacement, performance upgrades, and software changes.

Q2. Can Digital Signage Work Without Internet Access?

Yes, if the player supports local storage, USB playback, or cached schedules. Internet access is still needed for cloud publishing, live feeds, remote monitoring, and new content downloads. Test offline playback and automatic recovery before deployment.

Q3. Is 4K Required for Digital Signage?

No. Full HD can work well for simple menus, directories, and screens viewed from a distance. 4K can improve fine text, detailed images, close viewing, and large-format content. Every device in the signal path must support the selected format.

Q4. What Is the Difference Between a Media Player and an HDMI Splitter?

A media player receives or stores content, processes it, and produces a video signal. An HDMI splitter copies an existing signal to several outputs. A splitter does not create schedules, process media files, or manage playlists.

Q5. How Much Storage Does a Digital Signage Media Player Need?

Add the size of all locally stored media, then reserve capacity for temporary downloads, logs, software updates, and future campaigns. Image-based schedules use relatively little storage. High-resolution video libraries and long offline playlists require substantially greater capacity.

Q6. What Factors Affect Digital Signage Hardware Life?

Operating hours, heat, dust, ventilation, power quality, component quality, and maintenance all affect service life. Matching the equipment to its environment and rated duty cycle reduces premature failure. Surge protection, airflow, inspections, and controlled updates also support long-term reliability.
