Your HDMI signal is dying somewhere between the source and the screen, and the fix is one of three things: a booster, an extender, or fiber. Pick wrong, and you're either tearing open a wall for nothing or bolting on hardware that was never going to save a dead cable.
Choose an HDMI booster when an existing cable is installed and testing shows the cable, source, display, and signal are otherwise compatible. Choose an extender when a dedicated Cat5e or Cat6 route is practical. Use fiber when a longer optical path fits the required bandwidth, connectors, power, and service access.
Distance alone rarely tells the whole story. Resolution, refresh rate, HDR, cable type, direction, power, and access all shape the outcome. Measure the route and record the required signal before you buy.

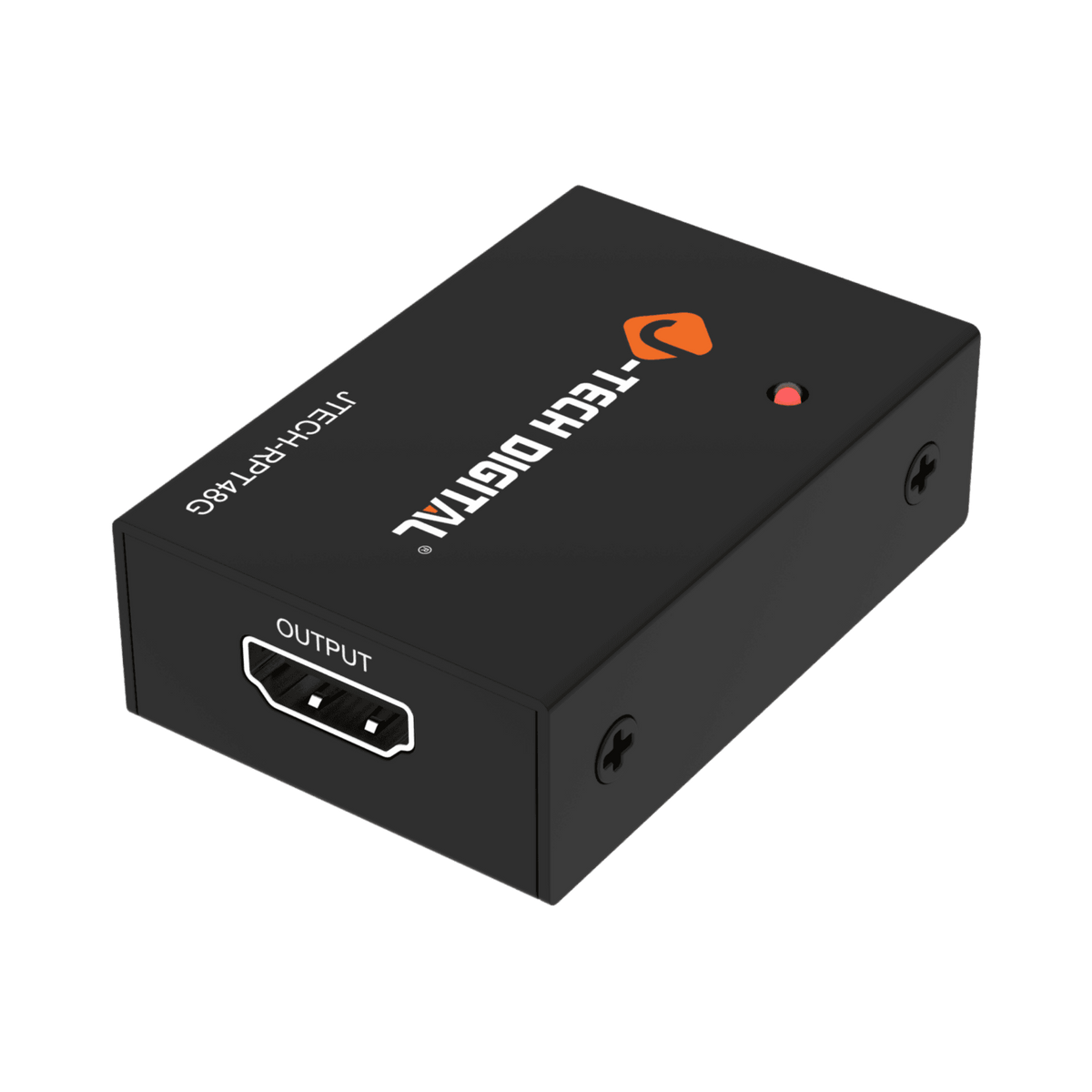

HDMI Boosters Strengthen Existing Cable Runs
An HDMI booster is the least disruptive option when you want to preserve an existing HDMI path. It regenerates or strengthens the signal without replacing the route with twisted-pair or fiber cabling.
Start with basic testing. Connect the source to the display with a known-good shorter HDMI cable, try another display input, and inspect accessible connectors. If the shorter cable works but the installed route does not, signal loss may be part of the problem. A booster still cannot repair physical damage, correct a loose connector, or add bandwidth that the cable and endpoints do not support.
Check the booster’s documented resolution, refresh rate, HDR, audio, HDCP, cable length, placement, and power requirements. Some devices draw power through HDMI, while others use USB or a separate adapter. The official HDMI Cable Power guidance explains that compatible active cables may receive source power, while directional models must be connected from the marked source end to the display end.
Choose a booster only when the existing cable is accessible enough to test and the complete path is within the device’s documented capability. If the cable is damaged, permanently inaccessible, or below the required signal tier, replacing the route is usually more practical than adding another active device.
HDMI Extenders Convert Signals for Longer Distances
An HDMI extender converts the signal for transport over another medium, usually dedicated Cat5e or Cat6 cable. A transmitter connects to the source, and a receiver restores HDMI near the display.
This approach is useful when you can pull a new cable through walls, ceilings, conduits, or equipment rooms. Twisted-pair cable is often easier to route than HDMI, but the complete channel must meet the kit’s requirements.
Do not assume every HDMI extender works through a normal Ethernet network. Many require a direct point-to-point cable and will not operate through a router, shared LAN, or standard switch unless the documentation supports that topology.
Verify the cable category, shielding requirements, termination method, patch panels, couplers, total route length, and transmitter and receiver power. Optional features such as IR control, USB, Ethernet, audio breakout, or power over cable must also be checked model by model.
The HDBaseT Alliance technology overview shows why the exact specification matters. Depending on the HDBaseT generation, cable type, and signal format, supported distances and features can differ. The page also describes point-to-point Category-cable installations and the possible transport of video, audio, control, Ethernet, USB, and power.
Plan both endpoints before closing a wall. Keep the transmitter, receiver, and power supplies accessible for troubleshooting. An extender is normally the stronger choice when the existing HDMI cable is unsuitable and a tested twisted-pair path can be installed.
Fiber Cable Handles High Bandwidth Over Distance
HDMI over fiber is relevant when a long point-to-point route, high signal requirement, or electrically noisy environment makes copper less practical. Optical transport can cover longer distances with a smaller cable profile, but it still depends on the exact cable or conversion system.
Two common designs are available. An active optical HDMI cable has HDMI connectors attached to both ends. A separate conversion system uses a transmitter, receiver, and compatible fiber cable. Both approaches must support the required resolution, refresh rate, HDR, color, audio, and HDCP.
Active optical HDMI cables are often directional. Some receive power from the HDMI ports, while others use USB power. Separate converters add endpoint hardware and may require local power at one or both ends.
Installation handling is critical. Verify connector type, conduit size, direction, pulling tension, bend radius, service loops, and future replacement access. Tight bends or excessive pulling force can damage optical cable even when the product’s headline distance appears suitable.
The Fiber Optic Association’s fiber installation guidance warns against exceeding the cable’s specified bend radius or pulling tension. The exact manufacturer limit should take priority because cable constructions differ.
Fiber is less affected by electromagnetic interference than copper, but it is not an automatic upgrade. Use it only when the documented optical solution fits the route, signal, power, and maintenance plan.
Compare Installation and Power Requirements
The three options differ in construction work, endpoint equipment, power, and future service. A technically capable product can still be unsuitable if it must be hidden in an inaccessible ceiling or powered where no outlet is available.
| Option | Cable Path | Endpoint Hardware | Power and Service Considerations |
|---|---|---|---|
| HDMI booster | Existing HDMI cable | Booster or active HDMI cable | Check placement, direction, source power, USB power, and access |
| HDMI extender | Dedicated Cat5e or Cat6 | Transmitter and receiver | Confirm one-end or two-end power, topology, termination, and ventilation |
| HDMI over fiber | Optical cable | Active optical cable or fiber converters | Check direction, powered ends, connector protection, bend handling, and replacement access |
A booster usually requires the least construction work, but one hidden behind a finished wall may be difficult to replace. Any separate power connection must remain accessible.
An extender adds two endpoint devices but can fit structured building routes. Some kits power both units from one end, while others require two adapters. Never assume power over cable is included simply because the system uses Cat6.
Fiber can be easier to pull through some conduits, but attached HDMI connectors may require more space than the cable itself. Separate converters can simplify future hardware replacement, although they introduce additional connectors and power supplies.
Document available outlets, equipment locations, ventilation, conduit bends, wall plates, patching, and service access before buying. Also check how the system reconnects after a power interruption. The best choice can be installed, powered, tested, and replaced without reopening finished surfaces.
Match Each Option to the Building
The building layout should determine the medium. A finished room, new office, classroom, auditorium, and rental property create different limits.
Finished Room With Existing HDMI
Test the source, display, and installed cable first. If the path is intact and the required signal is within the booster’s documented support, a booster or active HDMI cable may avoid construction work. If the route is damaged or cannot support the signal, amplification is unlikely to create a reliable long-term fix.
New Home or Office Route
A dedicated Cat5e or Cat6 extender route is practical when walls or ceilings are open. Plan the transmitter and receiver locations, cable termination, endpoint power, and service access before finishes are installed. Treat the route as an AV channel unless the exact product supports network-based distribution.
Meeting Room or Classroom
An extender often fits a layout where the source is in a lectern, desk, or equipment cabinet and the display is mounted farther away. IR, USB, audio, or power-over-cable features may reduce extra cabling, but only when they are documented for the selected kit.
Auditorium or Large Commercial Space
Fiber becomes more relevant when the route crosses long ceiling spaces, floors, or equipment rooms. Separate optical converters may be easier to replace than a permanently installed active optical HDMI cable. Accessible endpoints and a documented replacement path remain essential.
Rental or Temporary Installation
A booster, removable active HDMI cable, or protected surface-mounted route may be preferable when structural changes are limited. Avoid placing active equipment or fragile connectors where they can be stepped on, sharply bent, or disconnected.
Preserve HDMI when the existing path tests correctly. Use twisted pair when a dedicated structured route is practical. Select fiber when distance, bandwidth, or the installation environment justifies an optical path.
Check Resolution Before Selecting Hardware
Resolution is only one part of compatibility. A product described as “4K compatible” may not support the required refresh rate, HDR, color depth, chroma format, audio, or HDCP version.
Record the complete requirement before comparing products:
- Resolution and refresh rate
- HDR format
- Color depth and chroma format
- Audio format, ARC, or eARC
- HDCP version
- Source and display connectors
- Cable length and patching
- Topology and direction
- Power available at each endpoint
Official HDMI cable categories provide useful performance baselines. High Speed HDMI cables are designed for up to 10.2 Gbps, Premium High Speed cables are certified for up to 18 Gbps, and Ultra High Speed cables support up to 48 Gbps. These categories do not create one universal maximum distance for every installation.
Certification also applies to a tested cable model and length. A cable that passes at one length should not be assumed to perform identically at another. Every booster, extender, active optical cable, or converter in the path must support the required signal.
Follow this order:
- Measure the complete route, including bends and patch cords.
- Record source output and display input capabilities.
- Define resolution, refresh rate, HDR, color, audio, and HDCP.
- Choose the practical cable medium and topology.
- Verify power, direction, connectors, and endpoint access.
- Match every field to the exact product documentation.
For an existing route, begin with endpoint testing. For a new route, choose the medium first, then select hardware documented for the complete signal and measured path.
FAQ about HDMI Booster & HDMI Extender & Fiber Cable
Is an HDMI Booster Enough for an Existing Cable Run?
It can be, when the cable, source, display, connectors, and required signal are compatible with the booster. Test the endpoints and a known-good shorter cable first. A booster cannot repair cable damage or add support for an unsupported format.
When Is an HDMI Extender Better Than a Booster?
An extender is usually better when the existing HDMI path is unsuitable and a dedicated Cat5e or Cat6 route can be installed. Confirm the kit’s cable, topology, termination, power, and signal requirements before installation.
Is HDMI Over Fiber Automatically Better for 4K?
No. The optical cable or conversion system must document support for the required 4K format, including refresh rate, HDR, color, audio, and HDCP. Direction, power, connectors, handling, and service access must also fit the route.
Can an HDMI Extender Use an Existing Network Switch?
Only when the extender is specifically designed for network-based distribution and supports the planned switch and topology. Many HDMI extenders require a dedicated point-to-point cable.
What Should I Measure Before Buying HDMI Distance Hardware?
Measure the full source-to-display route, including bends, patch cords, wall plates, and service access. Record resolution, refresh rate, HDR, color, audio, HDCP, connectors, topology, cable medium, and power at both endpoints.
