An HDMI extender with loop-out provides a local HDMI output from the transmitter. It lets one source remain visible on a nearby monitor while the extender sends that source to a remote receiver and display. This setup works for one source, one local copy, and one remote path—not automatically as a complete multi-display distribution system.
How Does HDMI Loop-Out Work?
HDMI loop-out creates a local viewing path at the source end of an extender. The usual arrangement is:
Source → transmitter → local loop-out display
At the same time, the signal follows this path:
Transmitter → extender link → receiver → remote display
For example, a media player beside a presentation monitor can feed the monitor through the transmitter's loop-out while the receiver sends the same source to a projector across the room. The nearby screen connects to the transmitter, not the receiver at the far end. That's the key difference between the local output and the remote HDMI output.
In general, an additional local HDMI output on the transmitter is designed for local monitoring while the source continues through the extender. Look for labels such as "loop-out" or "local HDMI out," then confirm that the specifications describe both the local and remote paths you need. Port labels alone do not establish resolution, audio, scaling, or mixed-display behavior.
Some products are marketed as an HDMI extender with loop-out because they combine distance extension with a local copy. That phrase is not a universal technical category, however. Output behavior varies by model. A product may specify different limits for its local output, remote transmission path, or supported display modes, so use the model's manual or specification sheet for the final interpretation.
When Is Local Monitoring Useful?
Loop-out is useful when one source must stay visible near the transmitter while the same content reaches a remote TV, projector, or display. This local-plus-remote arrangement represents the primary practical use case for HDMI loop-out technology.
A typical setup has a laptop or media player beside a small monitor, with the monitor connected to the local loop-out and a remote receiver feeding the audience display. At home, the nearby screen might let someone monitor a source cabinet while a second TV is farther away. In an office or classroom, a presenter can keep a confidence view without turning around to watch the room display.
This is a duplicate-viewing setup, not a promise of independent content. Loop-out does not by itself mean that the local display can show one source while the remote display shows another, or that either output can be switched or routed independently. Those functions require explicit model documentation.
Before choosing an HDMI over Ethernet extender, note the source location, nearby display, remote display, approximate distance, transmission method, and number of remote destinations. If the plan is one source, one local copy, and one remote display, it matches the basic loop-out use case. If you need several destinations, continue to the comparison below.
Loop-Out vs. a Standalone HDMI Splitter
An extender with loop-out and a standalone splitter overlap because both can provide more than one view of a source, but their primary jobs differ. Choose loop-out when distance and one nearby copy are the main requirements. Consider a standalone splitter when several local HDMI outputs matter most, and a broader distribution system when the design needs more destinations or routing.
| Option | Primary job | Fit question |
|---|---|---|
| Extender with loop-out | Extend one source to a remote display while providing a nearby local output | Do you need one local copy plus one remote path? |
| Standalone HDMI splitter | Distribute one source across multiple local HDMI outputs | Are multiple nearby displays more important than remote extension? |
| Broader HDMI distribution system | Coordinate more destinations or more structured distribution needs | Do you need additional destinations, routing, or system-level control? |
A technical explanation of loop-out and splitter differences supports this distinction: a standalone splitter is primarily a local multi-output device, while an extender with loop-out adds a nearby copy to a distance-extension path. Neither description guarantees a particular output count, switching, scaling, or independent routing behavior.
If you need several displays in one room, start with the HDMI splitters category instead of assuming a loop-out port is enough. If the displays are separated by distance and you need only one nearby monitoring copy, compare extender designs. A video distribution system becomes more relevant when the layout includes multiple destinations or routing requirements beyond a straightforward local-plus-remote path.
Check Resolution Across Local and Remote Displays
Before buying, compare the required video mode with the exact extender's documented behavior across the source, local loop-out path, remote link, receiver, and both displays. Check resolution, refresh rate, format, cable type, transmission method, and distance together rather than relying on one advertised maximum.
Start with the source's required resolution and refresh rate. Then check whether the specifications list separate limits for the transmitter's loop-out and the remote output. This matters especially when the local and remote displays have different capabilities. Do not assume that both displays will automatically use the same mode, or that the local and remote paths negotiate, scale, or handle formats identically.
Review the model-specific notes for HDR, color format, HDCP, EDID, audio, scaling, and mixed-display operation when those features matter to your setup. Also verify the cable type and stated distance for the selected transmission method. An HDMI over Ethernet extender, for example, uses a different physical link than a wireless extender, so the advertised method alone does not answer every compatibility question.
The HDMI compliance guidance indicates that compliance testing does not guarantee interoperability among a particular source, extender, cable, and display combination. Treat an HDMI version or compliance label as a starting point, not proof that the complete path will support your desired mode. HDMI.org also explains that a product's version label does not describe every feature on its own, so check the exact supported features that matter to your setup in the HDMI feature guidance.
Use this verification sequence before placing an order:
- Record the source resolution, refresh rate, HDR or color requirements, and audio needs.
- Read the exact model's local-loop and remote-output specifications separately.
- Match the transmitter, receiver, cable type, transmission method, and distance to the documented limits.
- Compare the local and remote displays, including any mixed-display, HDCP, EDID, scaling, and audio notes.
- If a required detail is missing, treat the product as unconfirmed for that setup instead of inferring support from a broad HDMI label.
Common Loop-Out Applications
An HDMI extender with loop-out fits situations where the same source must remain visible locally while a supported remote display receives it. The strongest examples are simple two-view arrangements rather than systems that require independent content or complex routing, consistent with the local-monitoring use case.
In home entertainment, a source near a receiver or media cabinet can remain visible on a nearby TV or monitor while the same content reaches a remote TV or projector. The benefit is local visibility without making the remote screen the only way to confirm what the source is sending.

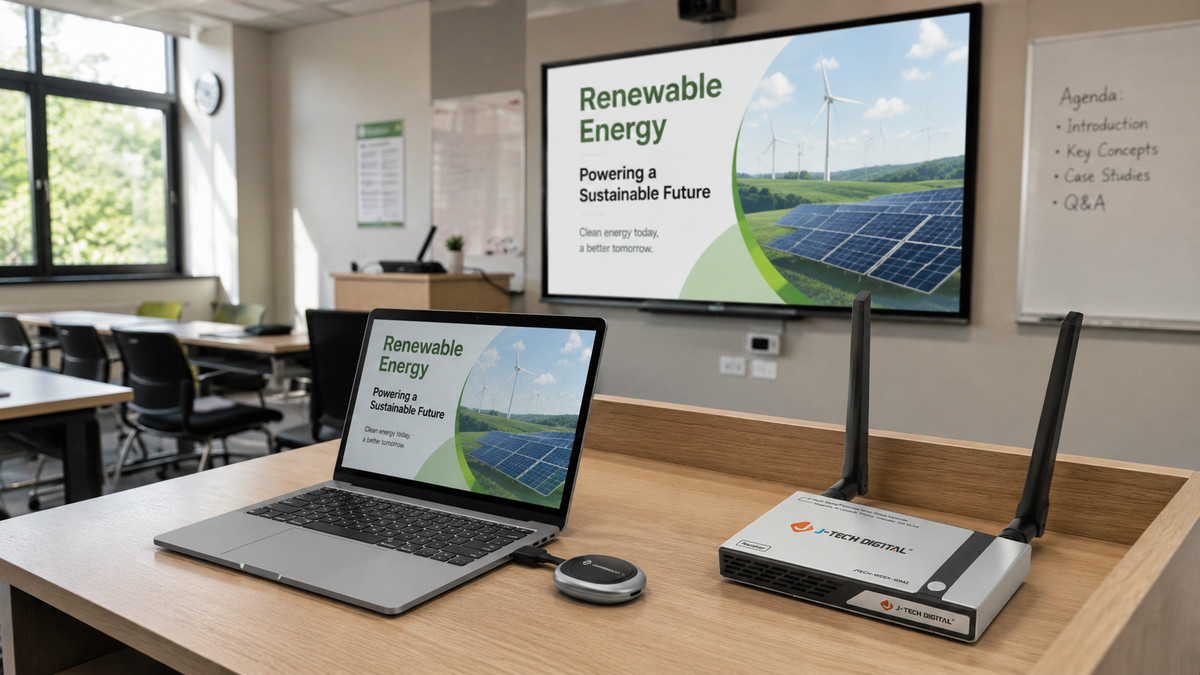

In an office, meeting room, or classroom, the presenter or operator can use the nearby output as a confidence view while the audience watches the remote display. This is useful when the source equipment is at a control table and the presentation screen is across the room. It remains a one-source viewing arrangement unless the product documentation says otherwise.
Presentation and signage-style setups can also use loop-out when the design calls for one local copy and one remote path supported by the chosen model. If the installation needs several destinations, separate content, or independent routing, compare a standalone splitter or broader HDMI distribution system instead of choosing an extender based on the loop-out label alone.
To make the final choice, count the local and remote screens, note the cable or wireless distance and transmission method, and record the required resolution and format. Compare those details with the specifications for the product you are considering. If a required detail is missing,treat the setup as unconfirmed rather than assuming the loop-out label settles compatibility.
FAQ about HDMI Loop-Out
Can loop-out show different content from the remote display?
Not by default. Treat it as a local copy of the source unless the model's documentation explicitly describes independent content or routing. If separate content is essential, a simple local-plus-remote design is not enough.
Does a loop-out port tell me how many remote displays I can connect?
No. A loop-out port identifies a local output, not the number of remote destinations. That count depends on the extender's transmission and receiver design, so choose a broader distribution category when several destinations are central to the layout.
What should I do if the local display works but the remote display does not?
Start with the remote path rather than treating the loop-out result as proof that the entire installation is compatible. Recheck the source mode, transmitter and receiver requirements, cable or wireless distance, remote display limits, and any HDCP, EDID, audio, or format notes. If one required detail remains undocumented, do not treat the setup as confirmed.
Is an HDMI extender with loop-out better than a splitter?
Neither is universally better. Use loop-out when you need distance plus one local copy; consider a standalone splitter when multiple local outputs are the priority. A broader distribution system fits layouts that require more destinations or routing.
