If you're troubleshooting HDMI matrix switch EDID settings and getting black screens, missing audio, or blocked protected content, start by mapping every route, not by changing EDID settings. Record what already works, then choose an EDID setting that supports every display and audio device the same source needs to feed.
This guide covers that process in order: map the system, choose EDID, handle mixed-resolution displays, separate audio routes, check HDCP, and save a working setup you can repeat.

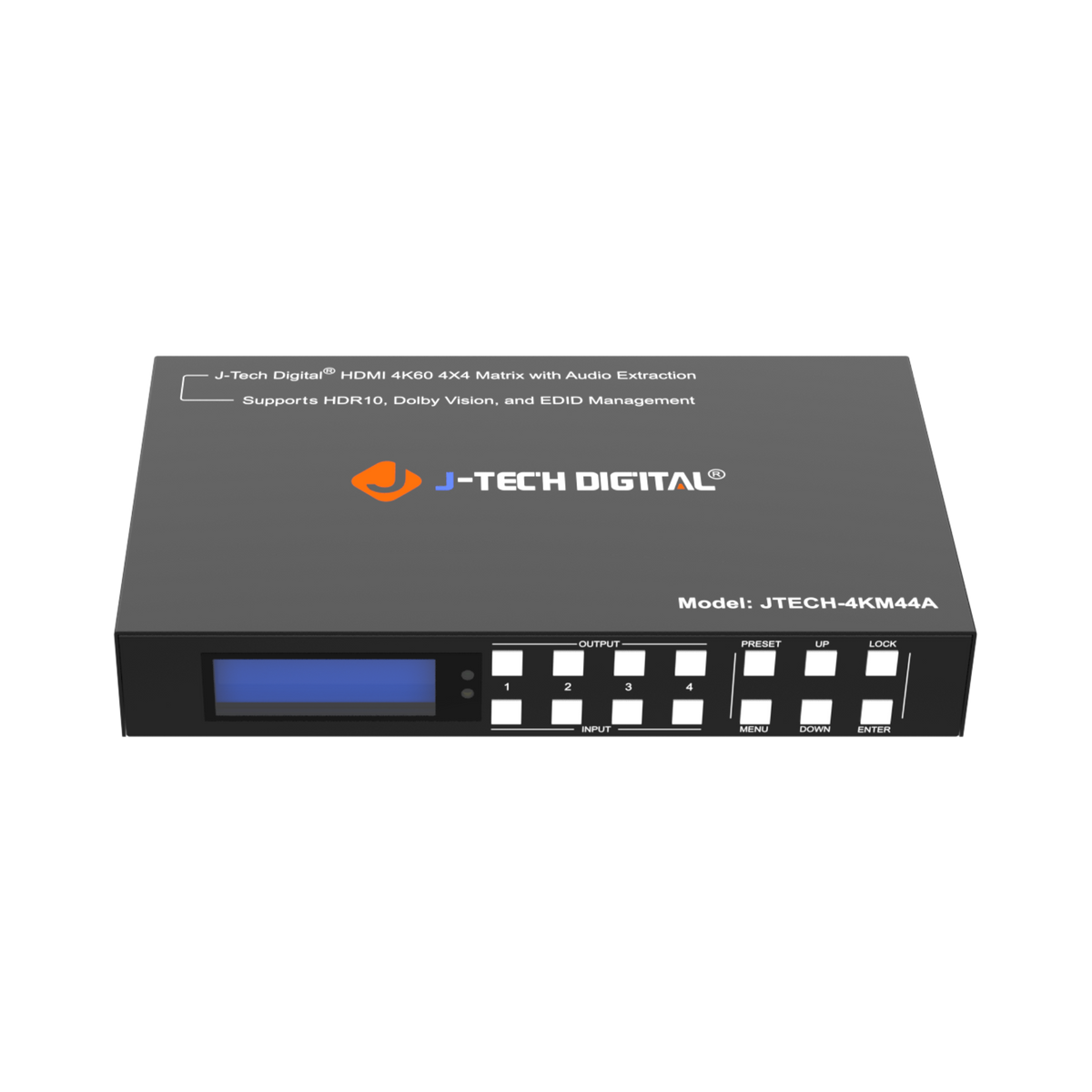

Map Every Source, Display, and Audio Path First
Before touching any EDID or audio setting, list every required route: each source, the matrix input it uses, the matrix output it leaves through, the display it reaches, and the audio endpoint that should produce sound. Write down what already works so you have a fallback if a change breaks something.
Each route also needs its own compatibility question answered: does the display accept the source's video format, does the intended audio endpoint receive sound, and does protected content play on that specific path? Checking connections throughout the AV system instead of only at the matrix catches problems that show up only on certain outputs.
How Does EDID Affect HDMI Matrix Routing?
EDID controls which video and audio format a source decides to send, so it directly affects whether a route produces a picture or sound at all. Get this wrong on one route and that route fails even though others work fine.
What EDID Tells the Source
EDID is capability information that a display or downstream device reports back to the source before any video plays. The source uses that report to decide which format to send. In a matrix system, though, the source doesn't always see one display's real EDID directly. It typically sees one of three things:
- A common intersection of all connected displays' capabilities
- The EDID from whichever display connected first
- A forced profile set manually for that output
You can read a fuller breakdown of how this data gets structured in our guide on EDID explained.
Choose and Test One Strategy at a Time
Identify the display and audio endpoints required on that specific route.
Start with a common capability profile if every required device on that route can use it.
Switch to a forced or provisioned profile only if your matrix documents that control for that output.
Change one setting, reconnect or power-cycle if the matrix requires it, then test.
Compare the result with the route's recorded baseline and note whether this EDID change altered video or audio.
If a change breaks a route that used to work, restore the last known-good setting you recorded before testing anything else.
Manage Mixed-Resolution Displays by Route
When displays on the same route support different resolutions or refresh rates, EDID becomes a route-planning decision, not a single setting. You either find one format every required display can use, or you split the route.
When One Shared Format Works
Every required display on that route can accept the same resolution and refresh rate.
The least-capable display in the group, tested on the real route, still shows a stable picture.
Audio still reaches its intended endpoint after the shared video format is set.
If all three hold, one shared format is the simpler choice.
When to Separate Routes
One display needs a resolution or format the others can't share.
Scaling or independent per-output video is only usable if your specific matrix documents that feature; don't assume it.
Assign a separate source and output pair to the display that needs different handling, and record that assignment.
Don't force one format across displays that can't all use it. That usually means one screen works and another goes blank or shows a degraded picture. For setups that regularly need one source to feed screens with different resolutions, our mixed-resolution HDMI guidance covers how that kind of splitting works in more detail.
Route Embedded and Extracted Audio Separately
A working picture doesn't prove every audio endpoint is routed correctly. Embedded display audio and separately extracted or distributed audio follow different paths, so check them independently.
Embedded Audio to a Display
- Confirm the source is actually outputting audio, not just video.
- Confirm the matrix output feeds the display you expect.
- Check that the display's selected input is active and its speakers are on and not muted.
Extracted or Distributed Audio
- Trace the separate audio output from the source through the matrix's audio handling.
- Confirm the extractor, receiver, or soundbar is set to the correct input.
- Test that device's audio on its own, independent of the display's speakers.
If video works but one endpoint stays silent, trace that audio endpoint on its own before touching the EDID used by other routes. Changing shared EDID settings to fix one silent speaker can break video on a route that was working fine.
Check HDCP Across Every Signal Route
HDCP is one stage in a longer HDMI startup sequence, not the default explanation for every black screen. Check the whole route before assuming it's the cause.
Test the Route in Stages
- Confirm the display is detected at all: check for a connection or input signal indicator.
- Confirm the source receives usable EDID and offers a format the display accepts.
- Test ordinary, unprotected video first, then audio, then protected content, as separate checks.
HDMI initialization moves from detection to EDID exchange to HDCP authentication, so a failure early in that sequence usually points to detection or EDID, not HDCP.
Read the Symptom Pattern
No detection at all: check cabling, power, and input selection before anything else.
Video fails in a general, inconsistent way: recheck the EDID strategy for that route.
Protected content specifically fails while ordinary video plays fine: check HDCP participation across the source, matrix input and output, display, and any audio equipment sitting in that same route.
Don't label every blank screen an HDCP issue. Save that check for the protected-content-only pattern. Our guides on HDCP explained and HDMI handshake troubleshooting go deeper into what each stage failure usually points to.
Save Working Routes as Repeatable Presets
Once a route works, write it down before you rely on it. A preset is only useful if it reflects a route you've actually tested.
Create the Route Record
- Write down the working source, matrix input, matrix output, display, and audio endpoint for each route.
- Note the EDID choice used and the video, audio, and protected-content test results.
- Flag any route-specific limitation, such as a display that needs its own output.
Save and Verify the Working State
- If your matrix documents a save or preset function, use it to store the verified state and note its name or number.
- If your matrix has no save function, keep the written route record as your working reference instead.
Once every route passes its recorded checks, the saved state is ready for repeatable use. If any route fails, restore the last known-good record and correct that route before relying on the preset.
FAQ about HDMI Matrix EDID and Audio Routing Problems
Which EDID setting should I use on an HDMI matrix switch?
There's no single correct EDID mode for every setup. Start from your recorded working state, then test a common capability profile against the specific source and displays on that route. Only switch to a forced profile if your matrix documents that control, and revert to the last working setting if the change breaks the route.
Can one HDMI source feed displays with different resolutions?
Only if every required display can use the same shared format, or your matrix has documented scaling or independent per-output behavior. If neither is true, split the route so each display gets its own source and output assignment rather than forcing one format across all of them.
Why does video work while audio is missing on one device?
Trace that audio endpoint on its own. Confirm the source is sending audio, the matrix output reaches the right device, and that specific device's input and volume are correct. Embedded display audio and extracted or distributed audio use different paths, so a working picture doesn't confirm either one.
How do I tell an HDCP problem from an EDID problem?
Check where the failure happens. No detection at all points to a cabling or connection issue. A general, inconsistent format failure points to EDID. If ordinary video plays fine but protected content specifically fails, check HDCP authentication across the source, matrix path, display, and any audio gear in that route.
Can I save an HDMI matrix setup as a preset?
Always write down the working route, source, output, display, EDID choice, and test results regardless of hardware. Use a save or recall feature only if your specific matrix documents one, and retest every route after recalling it. Treat the written record as your reliable fallback either way.
