An HDMI matrix makes sense when you need multiple sources and multiple displays to work in different combinations, not just when you have a lot of screens. The right HDMI matrix plan starts with source count, display count, and routing patter, then checks compatibility, audio, and control so the system fits the space and stays easy to use.
How Many Inputs and Outputs Do You Actually Need
Start with the devices you actually expect to route, not just the ones you already own. A useful input list for an HDMI matrix usually includes streaming boxes, cable or satellite boxes, media players, laptops, PCs, and presentation feeds.
Then count every display location that needs its own routing choice. A TV wall in one room is different from two rooms that may need different content, and that difference changes the matrix size more than the raw screen count does.
- List current sources.
- Add likely near-term additions, but only if they are realistic.
- Count every display that needs a separate route.
- Decide whether the system needs mirrored output, independent output, or both.
- Choose the smallest matrix that still covers the real routing pattern.
That last step matters because oversizing can make the system harder to justify, configure, and explain to the people who use it every day. A many-to-many layout is the clearest reason to move from a simple switch or splitter to an HDMI matrix switch, since matrix routing is about flexible source-to-display assignment rather than one fixed output pattern.
If you are still deciding whether your setup is actually a matrix use case, browse the matrix switchers category after you have mapped your inputs and outputs. For a simple input-to-output comparison, the splitter vs switch basics article is a good way to sanity-check the routing goal.
How an HDMI Matrix Routes Different Sources to Different Screens
The core idea is simple: a matrix sits between your sources and your displays, and it lets you assign one input to one output, or the same input to several outputs when the design supports that behavior. That is why the category is useful for spaces where not every screen should show the same thing at the same time; a video matrix is built for that kind of flexible routing.
Basic Signal Routing
Think of the matrix as a traffic controller for video. A source like a laptop can be sent to one display while a cable box goes to another, and the assignment can change without rewiring the whole system.
What matters for planning is that the matrix does not replace the rest of the signal chain. Cables, source outputs, display inputs, and the control method still have to cooperate.
Mirroring Versus Independent Output
Mirroring is useful when several displays should show the same content, such as a lobby display, a waiting area, or an overflow screen. Independent routing matters when different rooms need different sources at the same time.
That distinction is the main reason some buyers need a matrix and others do not. If every screen always shows the same source, a simpler distribution setup may be enough. If the routing needs change by room or by time of day, a matrix gives you the flexibility you are actually paying for.
What Control Methods Usually Change
Control methods affect daily use more than they affect the basic concept. IR, front-panel buttons, Ethernet, RS-232, or web control can all be reasonable depending on who changes routes and how often they do it.
In a small room, simple local control may be enough. In a busier space, you usually want a control method that makes route changes predictable for staff, volunteers, or technicians.
Common Layouts for Homes, Bars, Offices, and Worship Spaces
Different spaces need the same HDMI matrix logic for different reasons. The routing pattern may be similar, but the operator workflow, content mix, and tolerance for complexity are not.
| Space | Typical Routing Pattern | Planning Priority | Common Pitfall |
|---|---|---|---|
| Home theater or media room | A few sources, one or two display zones, and occasional mirrored output | Keep setup simple unless another room truly needs separate control | Buying more routing flexibility than the room will use |
| Bar or restaurant | Mixed, mirrored, and independent feeds across several TVs | Fast source changes and easy staff control | Assuming every screen should behave the same way all the time |
| Office or lobby | Frequent source changes, shared display zones, presentation use | Stable compatibility and simple recall | Ignoring laptop, adapter, and handoff friction |
| Worship space or overflow room | Main screen, overflow display, and monitor routes | Clear operator workflow and predictable routing | Overcomplicating the plan for volunteers who need repeatable steps |
Commercial venues often end up with a mix of mirrored and independent displays because different screens serve different roles. Home setups can be smaller, but they still face the same question: do you need flexible routing, or do you just need a single source everywhere?
That is also where longer runs can change the plan. If the display locations are spread out, a matrix-adjacent setup may need long-distance distribution planning, not just a simple switcher mindset. If that is part of your layout, compare the matrix and video wall differences before you commit to the route.
What Resolution, Audio, and Control Features Should You Compare
The safest way to compare an HDMI matrix is to treat resolution, audio, and control as separate checks. The biggest spec on the page does not matter if the weakest source or display in the chain cannot work with it.
Resolution and Refresh Planning
In real setups, the system usually behaves like the least capable link in the chain, not the most impressive one. That is why you should check the source device, the display input, and the cable path together before you assume a format will pass cleanly.
A matrix that looks fine on paper can still cause a mismatch if one display wants a different format than the others or if an adapter changes the handshake. For that reason, resolution planning is less about a blanket promise and more about matching the common format the whole system can support.
Audio Handling and De-Embedding
Audio is a separate planning question, not just a side note. In some rooms, the display is not where the speakers are, so audio may need to be routed to a different amplifier or sound system while video stays on the screen.
That is where audio de-embedding can be useful. The point is not that every installation needs it, but that some layouts split the picture and the sound by room design, not by preference.
Control and Integration Fit
If routes change a lot during the day, the control method becomes a usability issue. A simple control method may be enough for a small home system, while a busier office, bar, or worship space often benefits from a workflow that lets operators change routes without guessing.
Compatibility Checks Before Purchase
Before you buy, verify the source devices, display inputs, cable lengths, and any adapters you expect to use. EDID and handshake behavior can also affect which resolution and audio format the source sends, so it is worth checking that part of the chain early.
If long runs are part of the design, the HDMI matrix extenders category is a useful next step after you confirm the basics. Just treat it as a routing path, not proof that every model will fit your exact setup.
When to Choose a Matrix Instead of a Splitter or Switch

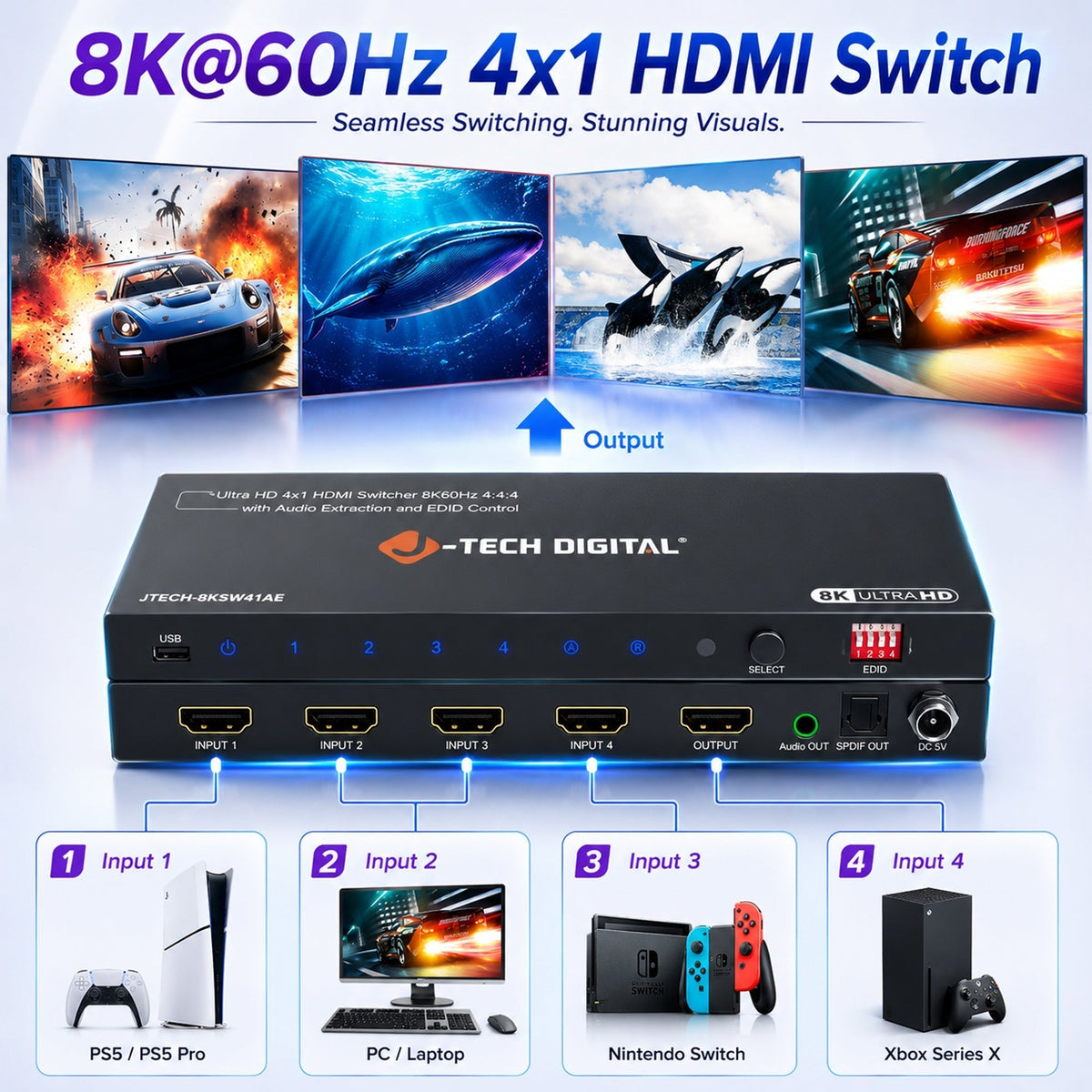

Use the routing goal to choose the device class, not the other way around. A splitter duplicates one source to many screens, a switch selects one of several sources for one display, and a matrix handles many-to-many routing when different displays need different sources.
- Choose a splitter when one source must show on multiple screens.
- Choose a switch when one display needs to pick between several sources.
- Choose a matrix when multiple sources and multiple displays need flexible cross-routing.
- Do not choose a matrix just because it sounds more advanced.
- Do choose a matrix when the room truly needs different content on different screens.
The flexibility is worth it when the layout changes by room, by audience, or by time of day. It is not worth it when every screen always mirrors the same feed, and the extra routing choices would only add setup work.
If the distinction is still fuzzy, the splitter vs switch basics article is a quick way to confirm which device class matches your actual routing goal.
A Clear Matrix Plan Makes Multi-Screen AV Systems Easier to Control
A good HDMI matrix plan starts with the real source list, the real display count, and the routing pattern the space actually needs. After that, check compatibility, control workflow, audio handling, and any distance or adapter issues before you commit to the install. When those basics are written down first, the system is easier to operate and a lot harder to misbuy.
HDMI Matrix Planning FAQs
Q1. How Do I Decide Between a 4x4 and a Larger HDMI Matrix?
Pick the smallest matrix that covers today's sources and display locations, then add growth only if it is likely in the near term. If the room only needs a few routes and one or two zones, a larger chassis can be more complex than valuable. If several screens need independent routing, size up only when the extra outputs will actually be used.
Q2. What Is the Difference Between a Matrix and a Splitter?
A splitter repeats one source to several displays, while a matrix can send different sources to different displays. If every screen is supposed to show the same thing, a splitter may be enough. If different rooms or screens need different content, the routing goal points to a matrix instead.
Q3. Can I Use an HDMI Matrix in a Home Theater Setup?
Yes, if the home has multiple sources and more than one viewing zone. The setup starts to make sense when a second room, projector, or display wall needs its own routing choice. If the whole home is just mirroring one source to one main TV, the extra flexibility is usually unnecessary.
Q4. Why Do Audio and EDID Settings Matter in a Matrix Plan?
They shape what the source decides to send and what the rest of the system can handle. If the display and audio gear do not agree on format, the result can be the wrong resolution, missing audio, or a handshake problem. Check those settings early when the system mixes different displays or audio paths.
Q5. What Should I Check Before Installing an HDMI Matrix?
Confirm the source list, display list, cable lengths, adapters, and control workflow before install day. Then verify that the displays and sources can share the same practical format. That checklist usually catches more problems than trying to fix the system after everything is mounted and wired.
