The number of inputs on an HDMI switcher is easy to compare. How you actually change sources is not, and it is the part people discover too late. The control method is independent of the input or output count. It determines how switching commands reach the device.
If the unit sits within arm's reach, front-panel buttons may be all you need. A handheld remote covers the same room from the couch. RS-232 gives you a wired path into a control system, and IP control puts switching on the network. Decide which of those the installation actually calls for before you compare anything else.
The four options below are not ranked. Each one solves a different problem, and the right one depends almost entirely on where the switcher ends up sitting.

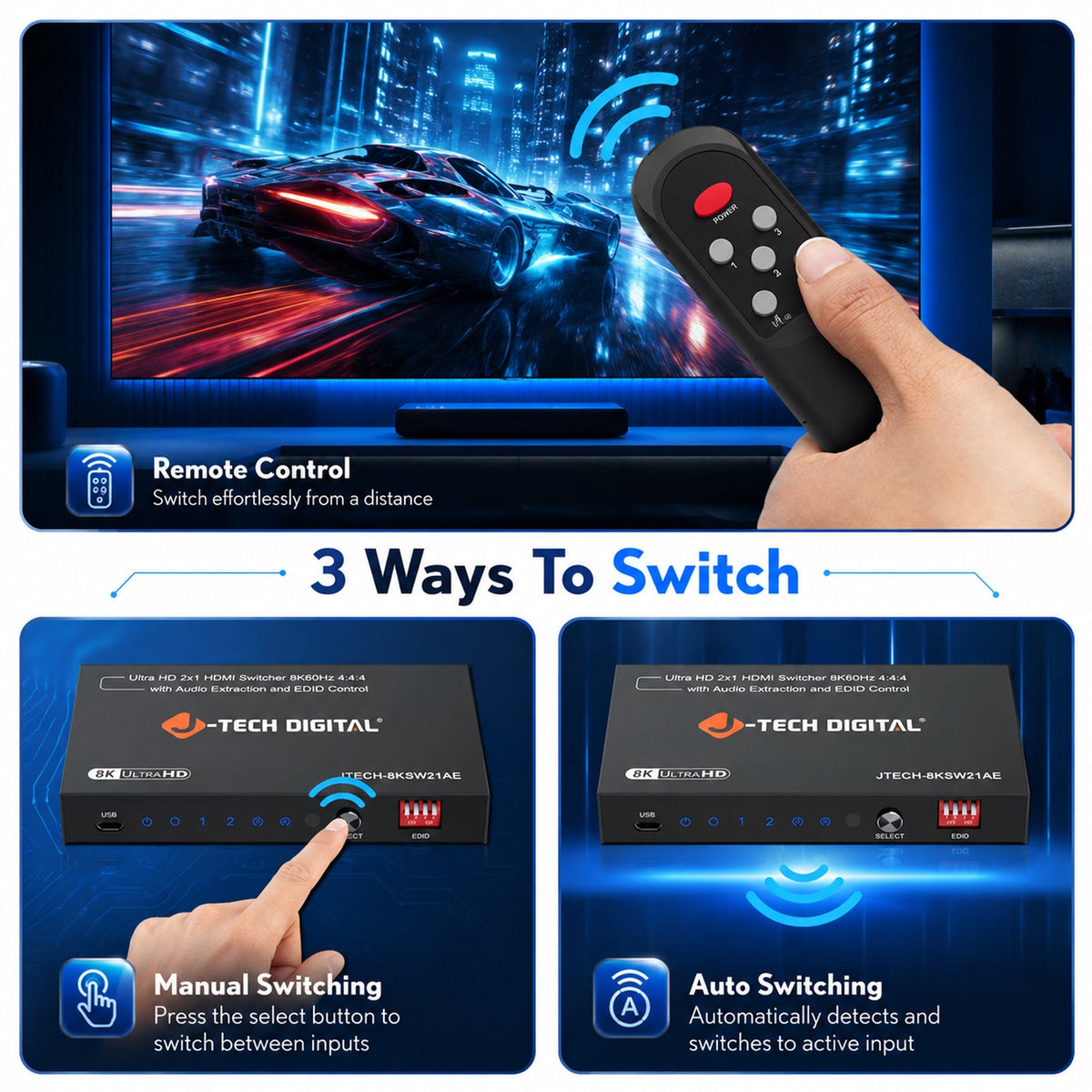

Front-Panel Controls Keep Operation Simple
Front-panel control is often the simplest choice when the HDMI switch remains within reach and manual source selection is all you need. It works well on a desk, TV stand, or accessible equipment rack, where pressing a button is easier than adding a separate control path.
A control method describes how the unit receives commands. It is separate from the number of HDMI inputs and outputs and from the device's routing scope. An HDMI matrix switch can route sources to multiple displays, but that routing function does not indicate whether the model also supports front-panel, IR, RS-232, or IP control. See the AVIXA matrix-routing definition for that distinction.
Front-panel buttons can also provide a useful local fallback when another control method is available. Before placing the unit inside a cabinet or behind a display, decide whether local access will be part of normal operation or reserved for setup and recovery. Hidden placement, seat-based operation, automation, and network management are practical reasons to consider another interface.
Automatic source selection is separate from external control. A switch may change inputs automatically without offering a remote, RS-232, or IP interface, so compare those capabilities separately.
HDMI Switch With Remote Control: Short-Range IR
An HDMI switch with a remote control is more convenient than front-panel operation when you want to change sources from a nearby seat. In this context, IR is the specific short-range method: the handset sends commands to the switch's infrared receiver.
The receiver must remain usable from the normal operating position. A cabinet door, enclosed rack, or piece of furniture that blocks it can reduce the convenience of an HDMI switch with a remote control. Receiver placement, the included handset, and extension hardware vary by model, so check those details on the model you are considering.
IR suits home theater, desktop, and display-side installations where the operator wants handheld switching but does not need a control processor or network connection. Front-panel buttons may still matter as a local fallback if the unit remains reachable. If you are comparing HDMI switches, focus on the control hardware listed for the specific model rather than the category page it appears on.
Place the receiver where the operator can aim the handset at it, then test source switching from the usual seat before finishing cable management. If reliable operation requires standing or repositioning, another control method may be more practical.
RS-232 Supports AV Automation
RS-232 is a better fit than a handheld remote when a control processor or computer needs to send switching commands through a wired AV workflow. It fits conference rooms and classrooms where selecting a source is one step in a preset, alongside dimming lights or lowering a projection screen.
In an installed AV system, IR and RS-232 can carry control signals, while IP control uses a network path. A connector or transport label alone does not show that a particular HDMI switch supports the command format your controller needs.
The key is the complete serial integration, not just the port name. The connector and cable arrangement, serial settings, command protocol, and controller compatibility all determine whether the wired path fits the installation. Those details cannot be inferred from the phrase “RS-232.”
Select RS-232 only when the intended automation system has a compatible, documented serial path. It is a better fit than a handheld remote when the switch is enclosed or source selection must come from installed AV equipment, but it is not required for every automated installation. Review the controller’s supported integrations and command documentation before purchase.
IP Control Enables Network Management
IP control is worth choosing when centralized or remote network-based operation is a real installation requirement. It fits a managed office or distributed AV system where authorized users or an automation platform already need to manage devices over a network.
For IP control, confirm the device’s network addressing, authentication, access method, management interface, and compatibility with local IT policies.
Use IP only when the installation has an appropriate managed network and the product exposes the network control interface and access method the system needs. Ethernet connectivity, HDBaseT transport, or another network-related connection does not by itself make a particular HDMI switch IP-controllable.
For occasional source selection at a desk or display, IP may add setup and coordination without solving an actual operating problem. In that situation, a front-panel or IR path may be simpler. When centralized management is necessary, include the network requirements in the model comparison.
Compare Control Methods by Installation Type
Shortlist the control method based on the operator's location and the integration path, then confirm the model-specific implementation. Use front-panel control for reachable hardware, IR for nearby handheld operation, RS-232 when a control system will send the commands, and IP when the switcher needs to be managed over the network.
| Control method | Best installation fit | Command path or setup focus | Main tradeoff |
|---|---|---|---|
| Front-panel | Desk, TV stand, or accessible rack | Press buttons on the unit; decide whether local access is normal operation or a fallback | Requires physical access to switch sources |
| IR remote | Home theater or nearby display | The handset needs a clear line of sight to the IR window from wherever you normally sit | Placement or an enclosure can affect convenience |
| RS-232 | Conference room, classroom, or installed AV rack | Match the connector, wiring, serial settings, command protocol, and controller | Wired integration requires documented compatibility |
| IP | Managed office or distributed AV installation | Confirm the network interface, access method, management, and IT requirements | Adds network planning that may be unnecessary for local switching |
Keep routing scope separate from control choice. A basic HDMI switch commonly handles source selection for one display, while an HDMI matrix switch provides more deliberate source-to-display routing across multiple outputs. Neither description confirms the control interface. If your installation needs multiple displays, browse matrix switchers for routing options, then evaluate control support separately.
Before purchase, write down where the operator will be, whether the unit will be enclosed, whether an automation system must issue commands, and whether local buttons are needed as a fallback. Then use the exact model's product manuals or specification page to confirm the required interface, included remote or receiver, connector or network details, and serial or network command requirements.
FAQ about HDMI Switch Control Options
Can an HDMI switch have both front-panel buttons and a remote?
Yes, some models provide both, allowing handheld operation with a local fallback. The combination varies by model, so include local access in your selection criteria when it matters.
Is an IR remote practical when the HDMI switch is inside a cabinet?
It can be practical if the IR receiver remains usable from the operator's position. If the receiver is blocked or difficult to aim at, another control path or a different receiver placement may fit better.
Should I choose RS-232 or IP control for AV automation?
Choose RS-232 when the system calls for a compatible wired serial path. Choose IP when network-based control is already part of the installation. The better choice follows the connection path your automation system uses.
Does an automatic HDMI switch still need a remote?
Not necessarily. Automatic source selection and external control are separate features, so a switch can change inputs automatically without offering a remote, RS-232, or IP control.
