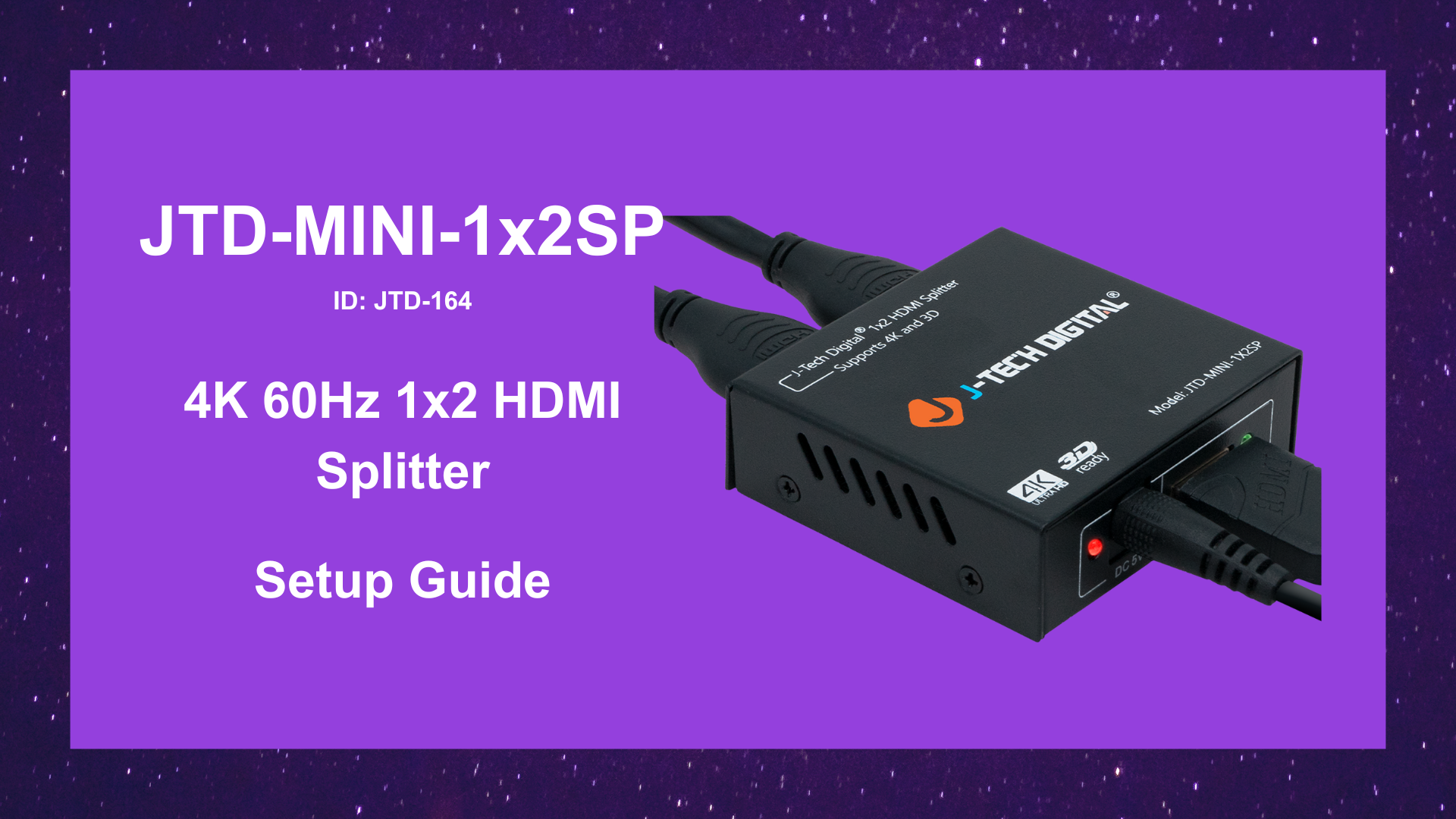

JTD-Mini-1x2SP (JTD-164) – 4K 60Hz 1x2 HDMI Splitter | Setup Guide

Product Link:

https://www.jtechdigital.com/products/hdmi-splitter-4k-60hz-4-2-0-1x2-hdmi-splitter

Model: JTD-MINI-1x2SP

JTD-ID: JTD-164

Category: HDMI Splitter

J-Tech Digital's JTD-MINI-1x2SP 4K splitter allows you to take an audio/video signal from 1 source device, and distribute that to 2 displays. Supports up to 4K 60Hz 4:2:0 resolution, and backwards compatible with 1080P, 720P etc. Perfect for using with Blu-Ray players, Gaming Consoles, Desktop and Laptops. Easily integrate this unit within your setup whether it's a residential or commercial environment.

• Distribute 1 HDMI source to 2 displays: Connect 1 HDMI source device to the input of the splitter, and distribute that signal to 2 displays simultaneously

• Enjoy 4K Resolution Across Both Outputs: Works with resolutions up to 4K@60Hz and 4:2:0 chroma color subsampling

• Wide Variety of Audio Formats Supported: Enjoy HD audio formats including Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio

• Backwards Compatible with Lower Resolutions: Working with 1080P and not 4K? Not an issue. This splitter is backwards compatible with non-4k source devices and displays, including 1080P/1080i, 720P/720i/ 480P/480i



What’s in the Box:

• JTD-MINI-1x2SP 4K HDMI Splitter

• 5V USB Power Cable

• User Manual



What’s Needed for Setup:

• 1 x JTD-MINI-1x2SP HDMI Splitter

• 1 x HDMI Source (Blu-ray player, game console, streaming device, PC, etc.)

• 2 x HDMI Display Devices (TVs, monitors, or projectors)

• 3 x HDMI Cables (1 for input, 2 for outputs)



Installation Steps:

1. Connect the Source

   Plug your HDMI source device into the HDMI input port on the splitter.

2. Connect the Displays

   Connect HDMI cables from each HDMI output port on the splitter to your two displays.

3. Power the Splitter

   Connect the included 5V power adapter to the splitter and plug it into a power outlet..

4. Turn On Devices

   Power on your source device and displays. Both displays should now show the same video and audio signal.



Troubleshooting Tips:

No Signal on One or Both Displays:

• Ensure HDMI cables are firmly connected.

• Check that displays are set to the correct HDMI input.

• Test with shorter or high-speed HDMI cables for 4K resolution.

Resolution Problems:

• If one display is lower resolution (e.g., 1080P), the splitter may output the lower resolution signal for compatibility.

• Confirm your source device is outputting a supported resolution (up to 4K@60Hz, YUV 4:2:0).

Audio Issues:

• Confirm your source device is set to output supported formats (Dolby Digital, DTS, etc.).

• If no audio, set source audio output to PCM or Stereo.

Power Issues:

Verify the power adapter is securely connected and the splitter’s power light is on.

Call our team at (888) 610-2818 or email us at sales@jtechdigital.com or support@jtechdigital.com for more information!
