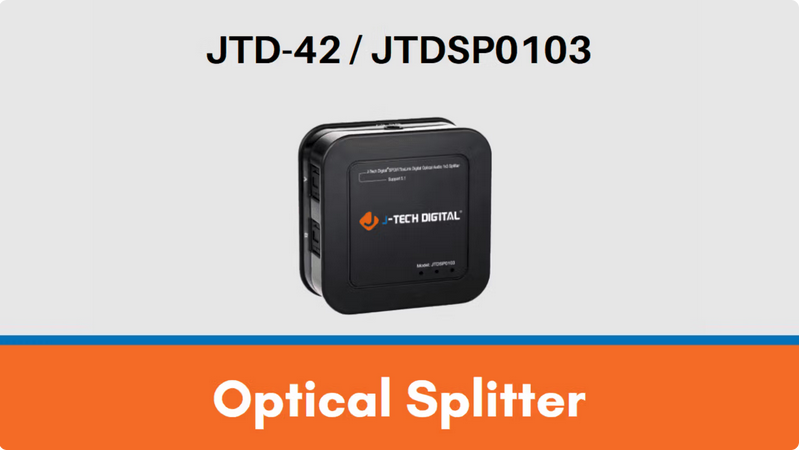

JTDSP0103 (JTD-42) – Optical Audio Splitter | Setup Guide

Product Link:

https://www.jtechdigital.com/products/jtd-sp0103-jtd-42-audio-splitter-1x3-spdif-optical-splitter

Model: JTDSP0103

JTD-ID: JTD-42

Category: Audio Splitter

The JTDSP0103 - 1-Input, 3-Output Optical Audio Splitter allows users to send their optical SPDIF/Toslink audio signal to three separate destinations simultaneously. Incorporate your new soundbar, AV receiver or wireless headphones into your existing setup easily with the JTDSP0103.

What You’ll Need:

• 1 x J-Tech Digital JTDSP0103

• 4 x Optical Audio SPDIF/Toslink Cables



Setup Instructions:

1. Connect an optical audio cable to the Digital Audio Output port of your source device and to the “In” port of the JTDSP0103 (In the connection diagram above, the Smart TV is the source device)

2. Connect an optical audio cable to Output Port “A” on the JTDSP0103 and to the Digital Audio Input port of your audio device (Wireless Headphones Transmitter/AV Receiver/Soundbar)

3. Repeat step 2 and utilize Output Port “B” & “C” on the JTDSP0103 for connecting additional audio devices



*Note – All connected audio devices must support the same audio format (PCM/Dolby Digital/DTS etc.) that your source device is outputting in order to achieve simultaneous audio output.
