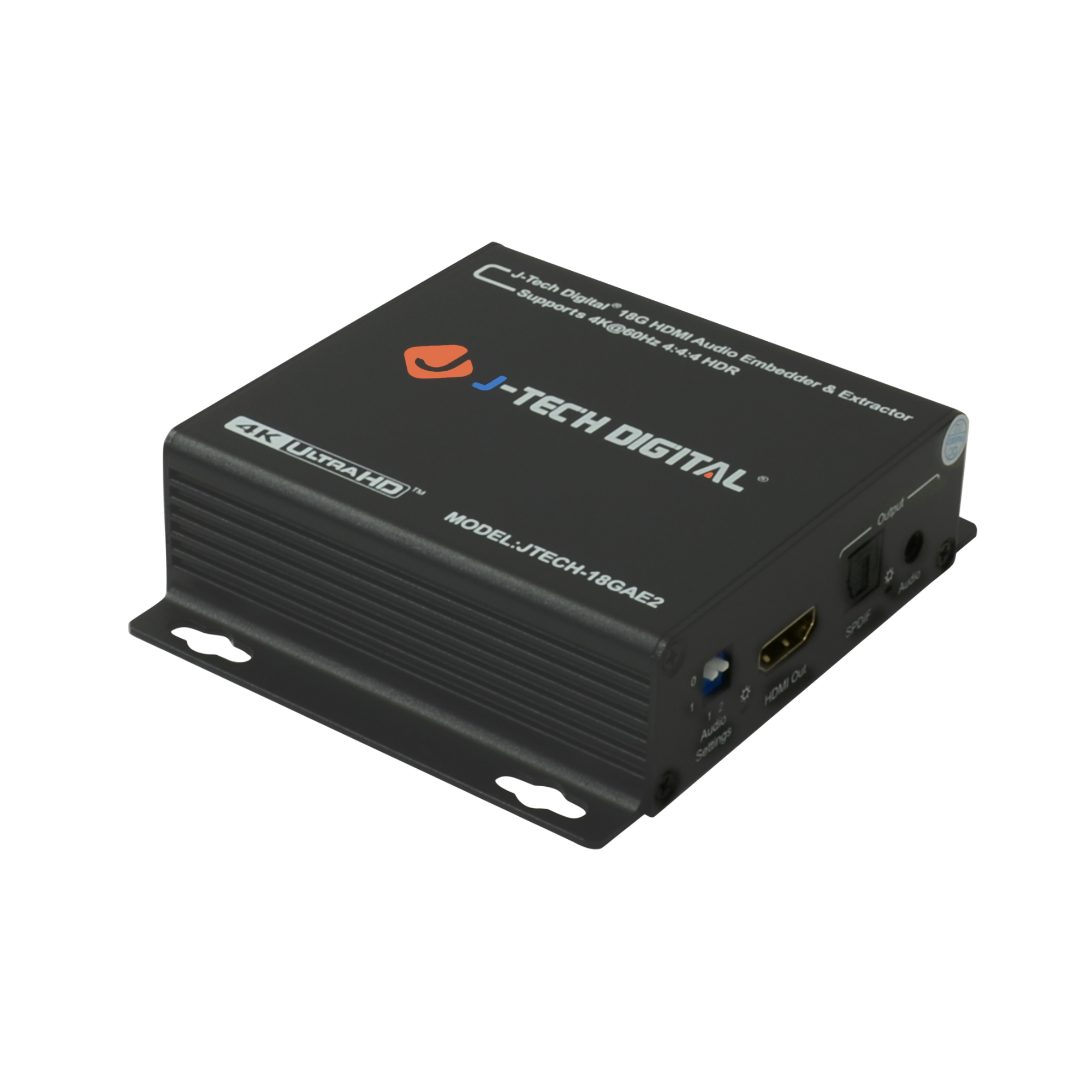

4K 60Hz HDMI Audio Embedder and Extractor

4K 60hz hdmi audio extraction and hdmi audio embedder

4K 60Hz HDMI Audio Embedder and Extractor

$84.69

✅ Use the HDMI audio extractor to de-embed digital audio signals from your HDMI 2.0 source device. Convert the extracted HDMI audio signal into an analog stereo (3.5mm) or digital optical (SPDIF) format for ultimate flexibility.
✅ Enjoy all of your 4K 60Hz HDR10, 1080p 120Hz, 1080p 144Hz content with no compromises. The JTECH-18GAE2 HDMI audio extractor is HDCP 1.4 and 2.2 compliant to ensure all full compatibility with all of the newest audio-video & streaming devices.
✅ Use built-in audio EDID settings (2CH | 5.1CH) or the EDID pass-thru function (TV) to optimize your HDMI audio extractor & AV system so you de-embed the correct audio format for your application.
✅ Embed 3rd party analog audio into your HDMI signal or utilize the JTECH-18GAE2 extraction function to breathe second life into older AV equipment such as AV receivers and amplifiers that don’t feature HDMI inputs.

Overnight shipping*:

Two days shipping:

Quantity

Availability:

In stock

SKU:

JTD-613

Model:

JTECH-18GAE2

Description

Easily extract or embed audio from your HDMI source with the JTECH-18GAE2. Convert HDMI audio to analog stereo (3.5mm) or digital optical (SPDIF) for seamless compatibility with older AV equipment, or embed external audio into your HDMI signal. Supports 4K 60Hz HDR10, 1080p 120Hz, and 1080p 144Hz content, and is fully HDCP 1.4 & 2.2 compliant. Customize audio output using built-in EDID settings (2CH/5.1CH) or pass-thru mode to optimize your home theater setup. Perfect for modern devices and legacy receivers alike.

✅ Supports analog audio embedding.

✅ DIP switch settings allow extraction of the digital HDMI audio signal from the HDMI input to 2-channel analog stereo output or 5.1-channel audio output.

✅ Supports PCM, Dolby 5.1, and DTS 5.1 audio formats.

✅ Supports resolutions up to 4K@60Hz with 18Gbps bandwidth.

✅ HDCP 2.2 and 1.4 compliant.

✅ Supports CEC.

✅ Supports firmware updates via USB.

4K 60Hz HDMI Audio Embedder and Extractor

$84.69

Specifications

Technical

Name	Values
Data Transfer Speed Rate	18Gbps (Maximum)
Supported Video Resolutions	4K 1080P 1080i 720P 576P 576i 480P 480i
Supported Video Color Format	xv-YCC / Deep Color 36bit
Supported Audio Formats	PCM DTS-HD Master Audio Dolby True-HD
HDCP Compliance	HDCP 2.2 HDCP 1.4
Input Video Signal	0.5 - 1.0 Volts P-P
Input DDC Signal	5 Volts P-P (TTL)

Mechanical

Name	Values
Dimensions (L×W×H)	4.11in × 3.50in × 1.12in
Net Weight	0.34 lbs
Operating Temperature Range	23°F to 104°F
Operating Humidity Range	5% to 90% RH (No Condensation)

Power

Name	Values
Power Consumption	1.5 Watts (Maximum)

Resources & Downloads

Category	Description	Version	File
MANUAL	User Manual	1.1	JTD-613 User Manual

Category: MANUAL

Description: User Manual

Version: 1.1

File: JTD-613 User Manual
