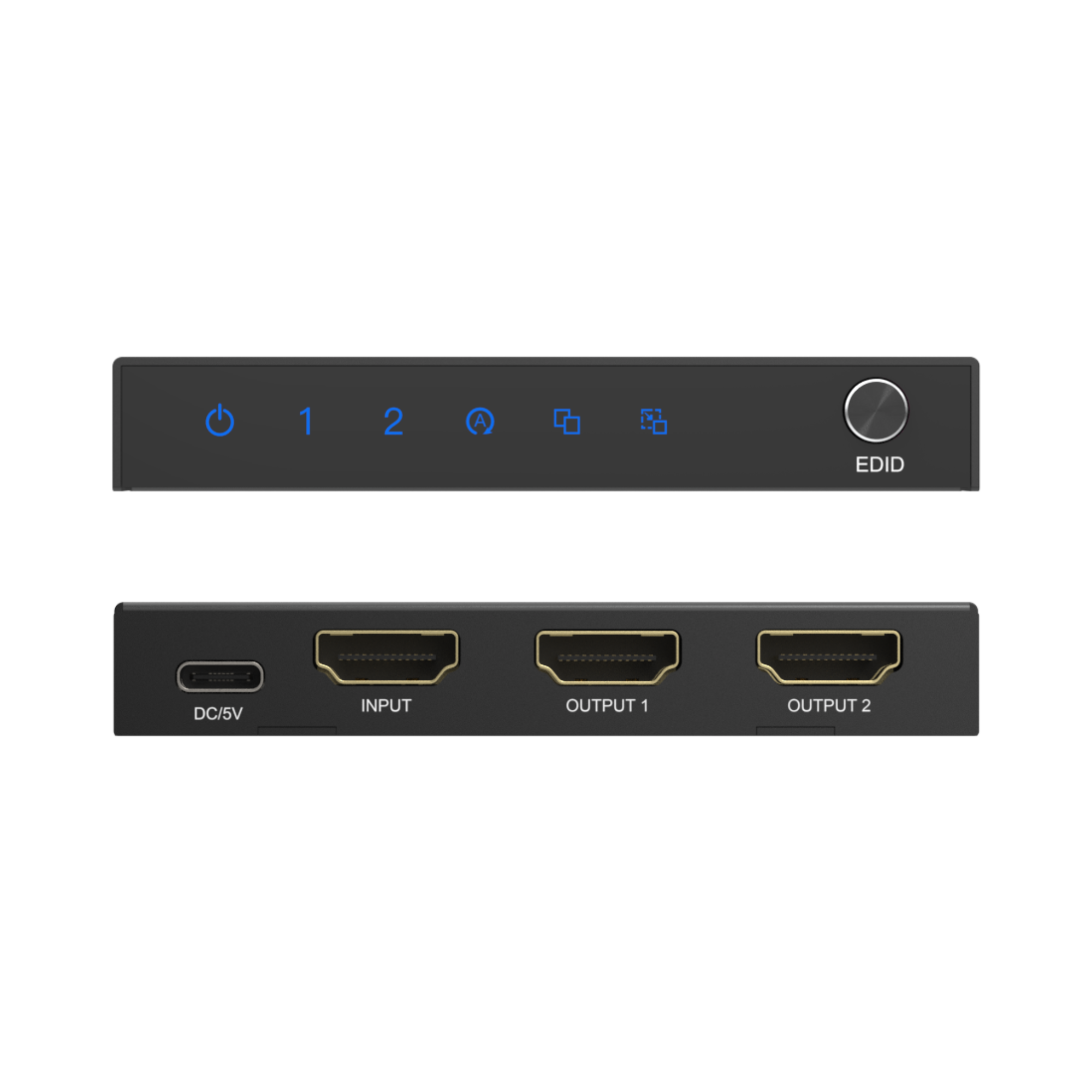

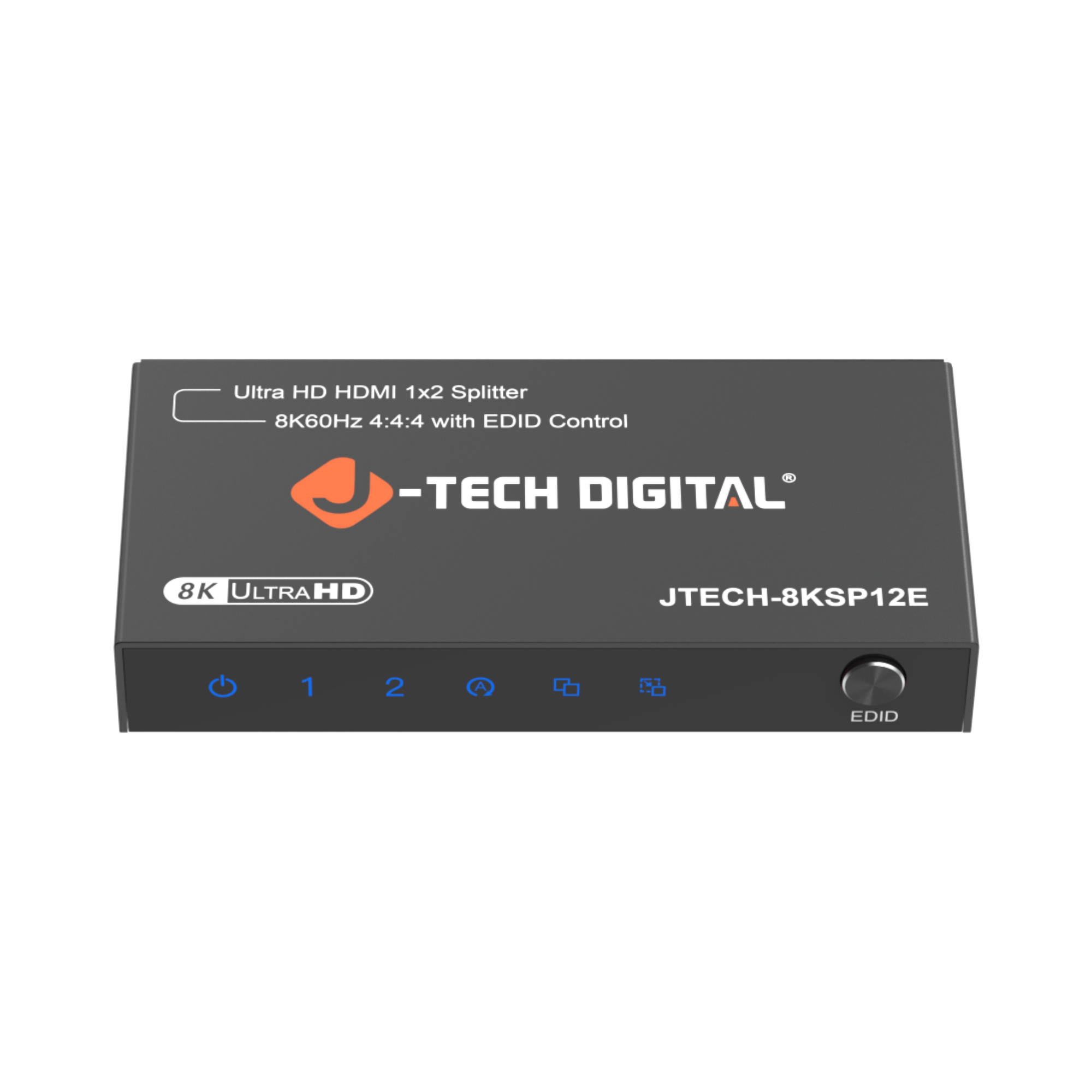

8K 60Hz 1x2 HDMI Splitter with Downscaling and EDID Control

Regular price $44.99
Sold out
  • ✅ Distribute 1 HDMI Signal to 2 Displays: Connect a single HDMI source, such as a cable box, media player, or gaming console, to two displays simultaneously with this 1 In 2 Out 8K HDMI Splitter. Perfect dual-display setups! Note: This splitter mirrors the same signal on both displays and does not extend the screen.
  • ✅ Supports UHD Resolutions & High Refresh Rates: This HDMI splitter supports resolutions up to 8K@60Hz, 4K@120Hz, and 1080P@240Hz, delivering crystal-clear visuals and smooth motion. It’s fully compatible with HDMI 2.1, HDCP 2.3, HDR, HDR10+, and Dolby Vision.
  • ✅ Features 8K Downscaling & 3 EDID Modes: Easily resolve display compatibility issues using the EDID button with three modes: Auto, Copy, and Downscale. This HDMI splitter supports 8K downscaling to 4K or 1080P, allowing you to connect displays with different resolutions in the same setup.
  • ✅ Digital Audio Pass-Through: Supports uncompressed audio formats such as LPCM, as well as high-quality compressed audio including DTS, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD for rich, immersive sound.

Overnight shipping*:

Two days shipping:

Availability:
Out of stock
SKU:
JTD-3258
Model:
JTECH-8KSP12E

Easily mirror one HDMI source to two displays with this 1x2 8K HDMI Splitter, perfect for home theaters, gaming setups, office presentations, or digital signage. It supports ultra-high-definition resolutions up to 8K@60Hz, 4K@120Hz, and 1080P@240Hz, along with HDMI 2.1, HDCP 2.3, HDR, HDR10+, and Dolby Vision, ensuring stunning color, sharp detail, and smooth motion on both screens.

Featuring 8K downscaling and three EDID modes (Auto, Copy, Downscale), it ensures seamless compatibility between displays with different resolutions. Enjoy rich, immersive sound with support for LPCM, DTS, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD audio formats. With its plug-and-play design, stable signal transmission, and intelligent EDID management, this HDMI splitter makes dual-screen viewing simple and reliable, without compromising picture or sound quality.

✅ Distribute 1 HDMI signal to 2 displays simultaneously with this 8K HDMI Splitter

✅Note that this HDMI splitter only mirrors the signal on both displays. It does not extend the signal

✅Ultra HD resolution and high refresh rates

✅Supports 8K@60Hz, 4K@120Hz, 1080P@240Hz

✅Features an EDID button with 3 modes; Auto, Copy, and Downscale

✅8K to 4K or 1080P downscaling function allows for displays with different resolutions to be used within the same setup

✅HDMI 2.1 standard support; HDR, HDR10, HDR10+, Dolby Vision

✅Supports CEC function, and HDCP 2.3 / 2.2 / 1.4 compliance

✅Uncompressed audio such as DTS, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD etc.

8K 60Hz 1x2 HDMI Splitter with Downscaling and EDID Control
8K 60Hz 1x2 HDMI Splitter with Downscaling and EDID Control

Specifications

Technical

Name Values
Input Ports HDMI x 1
Output Ports HDMI x 2
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 12Gbps/1200MHz per channel (48Gbps all channels)
Interlaced (50&60Hz) 480i, 576i, 1080i
Progressive (50&60Hz) 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz
Operating Temperature 0°C to 70°C
Storage Humidity 5% to 90% RH non-condensation

Power

Name Values
Power Supply DC 5V at 2A Power Charger
Power Consumption (Max) 10W
Power Adapter Standard US, EU, UK, AU Standard etc.

Certifications

Name Values
Splitter Unit Certification FCC, CE, RoHS
Power Supply Certification FCC, CE, RoHS

Mechanical

Name Values
Dimensions (LxWxH) 90 × 44 × 14mm
Net Weight 87g
Limited Warranty 1 Year Parts and Labor

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3258 User Manual

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3258 User Manual
