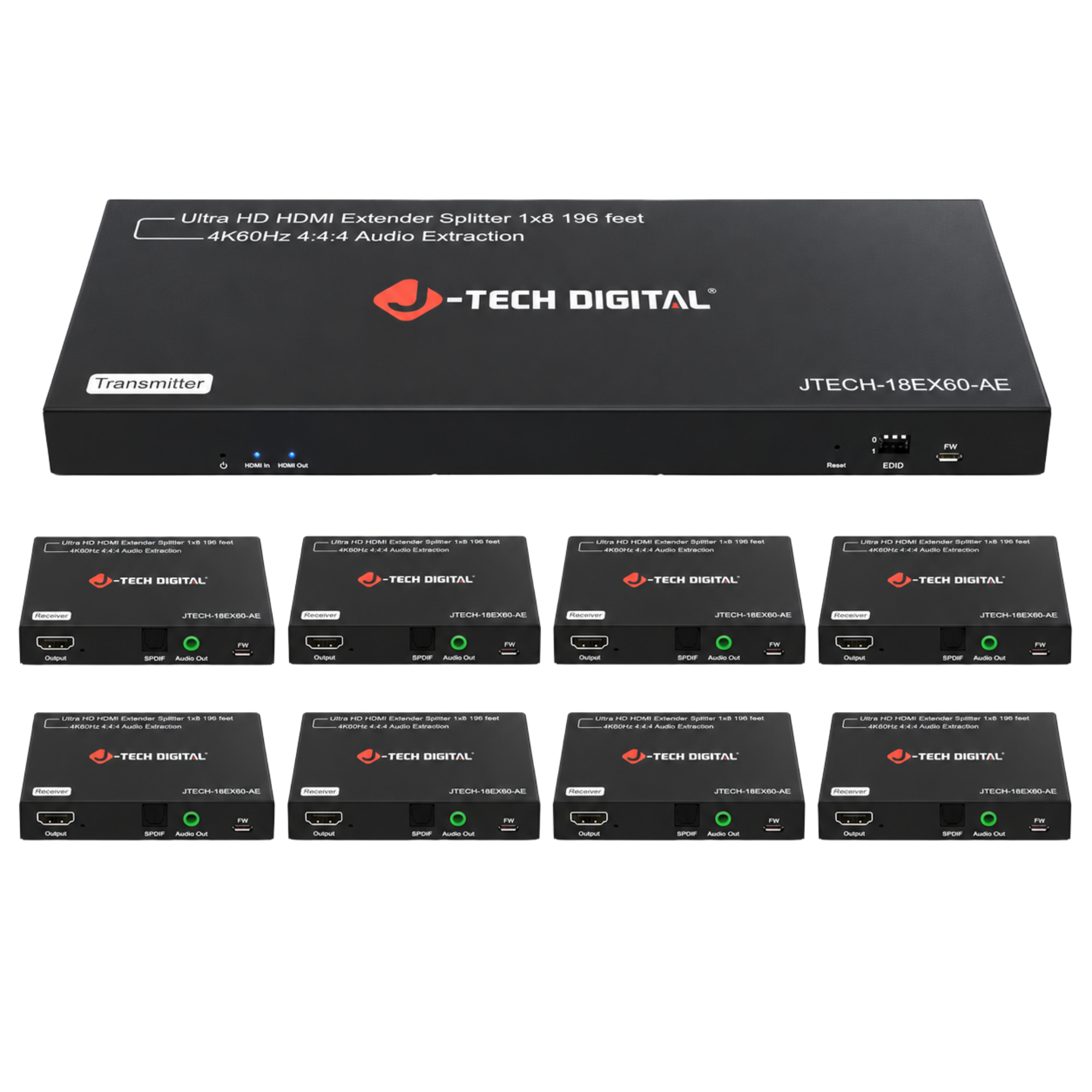

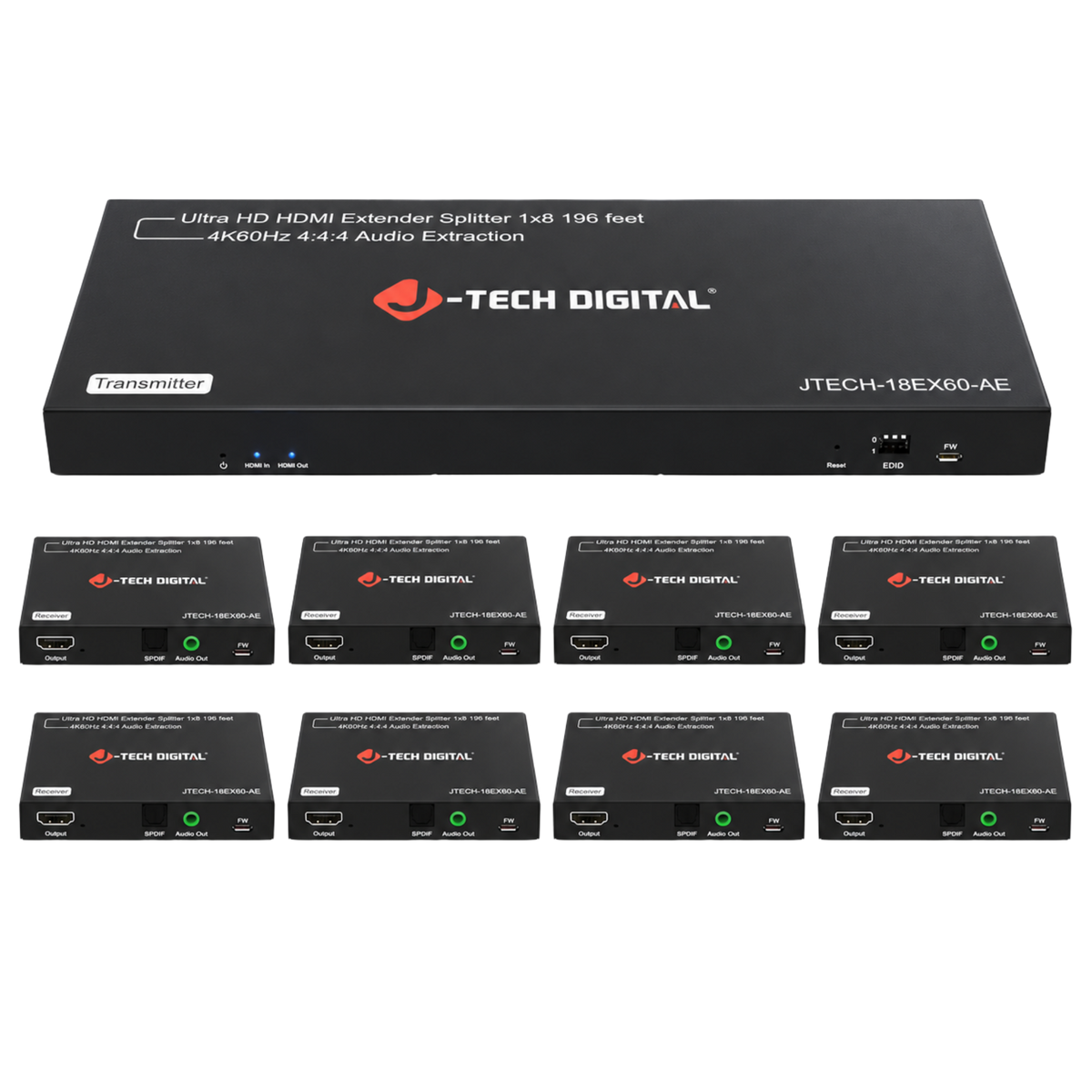

Bring reliable 4K video distribution to demanding multi-display setups with the J-Tech Digital JTECH-18EX60-AE 4K 60Hz HDMI Extender Splitter 1x8, designed to send one HDMI source to up to eight remote displays over CAT5e/6 while providing an HDMI loop output for a local display. Supporting resolutions up to 4K at 60Hz with 18Gbps bandwidth, it extends 4K@60Hz signals up to 196 ft (60 m) and 1080p signals up to 295 ft (90 m), making it well suited for conference rooms, classrooms, retail displays, security systems, control rooms, and training environments. Audio can be extracted on both the transmitter and receiver sides through analog and optical Toslink/SPDIF outputs, with support for LPCM 2.0/5.1, DTS 5.1, Dolby Digital, Dolby Digital+, and Dolby TrueHD. PoC powers the included receivers from the transmitter, while bidirectional wide-band IR enables control of compatible source and display equipment. The system also supports automatic 4K@60Hz to 1080p downscaling at the receiver end, along with 3-pin EDID management for selectable 4K, 1080p, 2-channel, and 5.1-channel configurations, plus EDID copy from the HDMI loop-out display. HDR10, HLG, and HDCP 2.2/1.4 support round out a flexible solution for professional HDMI extension and distribution.
✅ 4K@60Hz resolution support
✅ 1 HDMI input to 8 CAT5e/6 outputs
✅ HDMI loop-out for a local display
✅ Up to 196 ft at 4K@60Hz and 295 ft at 1080p
✅ Analog and optical audio extraction at TX and RX
✅ PoC power and bidirectional wide-band IR control
✅ EDID management, HDR10, HLG, HDCP 2.2/1.4 and 4K-to-1080p downscaling
