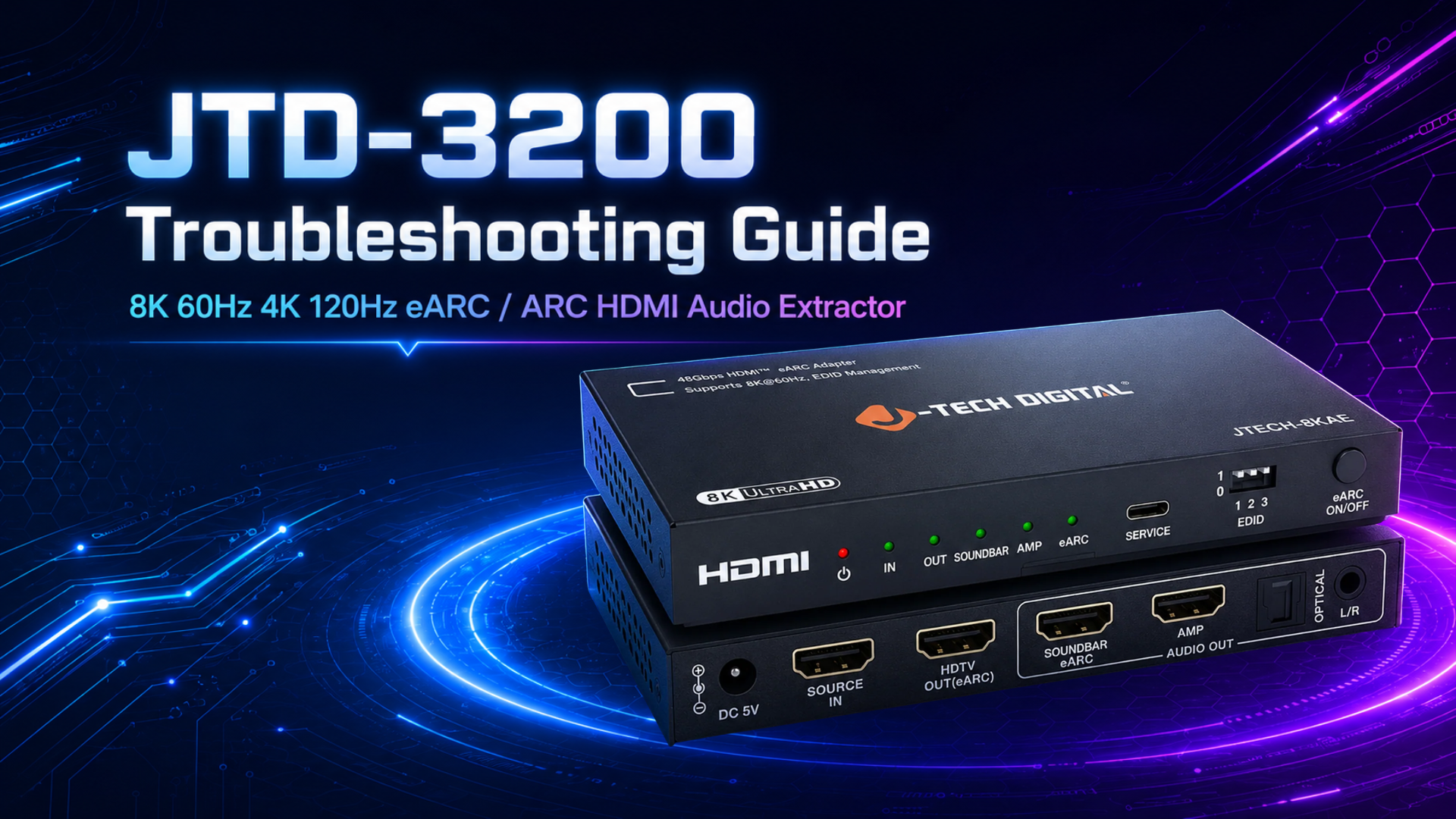

The J-Tech Digital JTD-3200 8K 60Hz / 4K 120Hz eARC and ARC HDMI Audio Extractor helps route high-resolution video to a TV while sending audio to a soundbar, AV receiver, amplifier, optical audio system, or analog speakers.

Because the JTD-3200 supports several audio outputs and operating modes, installation issues are often caused by the selected eARC mode, TV audio settings, EDID configuration, audio format, or HDMI cables rather than a defective device.

This guide answers the most common setup and troubleshooting questions for the JTD-3200.



Product Link:

https://www.jtechdigital.com/products/jtech-8kae-jtd-3200-8k-60hz-4k-120hz-earc-arc-hdmi-audio-extractor?_pos=3&_sid=54208910f&_ss=r

Model: JTECH-8KAE

JTD-ID: JTD-3200

Category: Audio Extractor



Quick Overview



What Does the JTD-3200 Do?



The JTD-3200 can extract audio from either:

• An HDMI source connected to the SOURCE IN port
• A television using its HDMI ARC or eARC port

It can send audio through:

• SOUNDBAR eARC AUDIO OUT
• AMP AUDIO OUT
• OPTICAL AUDIO OUT
• L/R analog audio output

The unit supports video resolutions up to 8K at 60Hz and 4K at 120Hz, along with HDR, Dolby Vision, VRR, ALLM and other HDMI 2.1 features. Supported HDMI audio formats include Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio and multichannel LPCM.



How Should I Connect the JTD-3200?



A typical connection setup is:

1. Connect your source device to SOURCE IN.
2. Connect HDTV OUT (eARC) to the television.
3. Connect your soundbar to SOUNDBAR eARC AUDIO OUT.
4. Connect an AV receiver or amplifier to AMP AUDIO OUT, if needed.
5. Connect an optical or analog audio system to the appropriate output.
6. Connect the included 5V power supply.
7. Turn on the TV, audio system and source device.

The application diagram on page 9 of the manual shows the JTD-3200 connected simultaneously to a television, soundbar, amplifier, optical audio system and analog speakers.



Troubleshooting & Frequently Asked Questions



What Is the Difference Between eARC Mode On and Off?



This is one of the most important settings on the JTD-3200.



eARC/ARC mode enabled



When eARC mode is turned on, the soundbar and amplifier outputs receive audio returned from the television through ARC or eARC.

Use this mode when:

• You use the TV’s built-in streaming apps
• Sources are connected directly to the TV
• You want the TV to control soundbar volume
• You want audio returned from the TV’s ARC/eARC port



eARC/ARC mode disabled



When eARC mode is off, the soundbar and amplifier outputs receive audio directly from the device connected to SOURCE IN.

Use this mode when:

• Your source is connected directly to the JTD-3200
• Your TV does not support ARC or eARC
• You want to bypass the TV’s audio capabilities
• The TV is causing an audio-format limitation

The eARC button on the front panel enables or disables this mode.



Why Am I Not Getting Audio From My Soundbar?



Check the following:



1. Confirm the correct port



The soundbar must be connected to:

SOUNDBAR eARC AUDIO OUT

Do not connect the soundbar to the standard television output.



2. Check the eARC LED



The eARC indicator provides useful diagnostic information:

• Solid: ARC/eARC and CEC communication are working
• Flashing: ARC/eARC is enabled, but communication is not working correctly
• Off: ARC/eARC mode is disabled

A flashing light usually points to a TV setting, HDMI cable or ARC/eARC handshake issue.



3. Enable ARC or eARC on the TV



Open the TV’s audio settings and enable settings such as:

• HDMI eARC
• HDMI ARC
• CEC
• External audio system
• Receiver or soundbar output

Manufacturers may use different names for HDMI-CEC, such as Anynet+, Simplink, Bravia Sync or VIERA Link.



4. Use the TV’s ARC/eARC HDMI port



Not every HDMI port on a television supports ARC. Connect the JTD-3200 to the HDMI input specifically labeled ARC or eARC.



5. Power-cycle the system



Turn off and disconnect power from:

• TV
• JTD-3200
• Soundbar
• Source device

Reconnect the HDMI cables, restore power to the JTD-3200, then turn on the TV, audio device and source.



Why Is the eARC Light Flashing?



A flashing eARC LED means eARC or ARC mode is enabled, but CEC communication and audio-return communication are not functioning properly.

Common causes include:

• The wrong HDMI port is being used on the TV
• ARC, eARC or CEC is disabled
• The HDMI cable does not reliably support eARC
• The TV or soundbar needs to be restarted
• The TV and soundbar have not completed their HDMI handshake
• An HDMI cable is too long or has insufficient bandwidth

Try replacing the cable between the TV and JTD-3200 with a certified Ultra High Speed HDMI cable.



Why Am I Not Getting Audio From the Optical Output?



The optical output supports:

• PCM 2-channel audio
• Dolby Digital 5.1
• DTS 5.1

It does not support lossless formats such as Dolby TrueHD, DTS-HD Master Audio or full Dolby Atmos over optical.

When optical audio is silent, set the source or television audio format to:

• PCM
• Stereo
• Dolby Digital
• Bitstream with a compatible 5.1 format

Avoid selecting Dolby TrueHD, multichannel LPCM 7.1 or another format that optical cannot carry.



Why Am I Not Getting Audio From the 3.5 mm L/R Output?



The analog L/R output only supports 2-channel PCM audio.

Set the source or television to:

• PCM
• Stereo
• 2-channel audio

The analog output may remain silent when the source is sending Dolby Digital, Dolby Atmos, DTS or another compressed multichannel format.



Can I Use Dolby Atmos and Analog Audio at the Same Time?



Not always.

The HDMI soundbar and amplifier outputs can support advanced formats such as Dolby Atmos and Dolby TrueHD. However, the analog output requires PCM stereo.

If the source sends Dolby Atmos, the L/R output may not produce audio because the JTD-3200 does not convert every advanced surround format into analog stereo.

To use the L/R output, change the source audio format to PCM stereo. This may prevent the HDMI output from carrying Dolby Atmos at the same time.



Why Do I Have Video but No Audio?



Video with no audio usually means the HDMI signal is passing correctly, but the selected audio format or output path is incompatible.

Check:

1. Whether eARC mode should be on or off
2. Whether the correct audio output is connected
3. Whether the source is set to PCM, Dolby or DTS
4. Whether the receiving audio device supports the selected format
5. Whether the EDID switch is advertising the correct channel capability
6. Whether the TV is set to external speakers or audio-system output

For basic testing, set the source to PCM stereo. Once audio works, test higher audio formats individually.



What Do the EDID Switches Do?



The three EDID switches tell the source which video and audio formats the connected system supports.

The available settings are:





The factory-default setting is 111, which copies the connected display’s EDID.



Which EDID Setting Should I Use?



Use 111 when:



• Your TV and audio equipment work correctly together
• You want the JTD-3200 to copy the TV’s capabilities
• You are performing an initial basic setup



Use 110 when:



• Your TV supports the desired video format
• Your soundbar supports better audio than the TV reports
• You want the source to detect the TV’s video capabilities and soundbar’s audio capabilities separately



Use a 2-channel setting when:



• You use the analog L/R output
• You use a basic stereo amplifier
• You are troubleshooting missing audio



Use a 5.1-channel setting when:



• You use optical audio with Dolby Digital or DTS
• Your receiver supports 5.1 audio but not 7.1



Use a 7.1-channel setting when:



• Your HDMI receiver or soundbar supports advanced multichannel audio
• You want Dolby Atmos, Dolby TrueHD or DTS:X compatibility



After changing EDID, restart the source device so it can read the new EDID information.



Why Am I Not Getting 4K 120Hz or 8K 60Hz?



The JTD-3200 supports up to 8K 60Hz and 4K 120Hz, but every component in the signal path must also support the selected resolution.

Check:

• The source supports 4K 120Hz or 8K
• The television supports the selected resolution and refresh rate
• The correct high-bandwidth HDMI port is being used
• Enhanced HDMI, Deep Color or Input Signal Plus is enabled on the TV
• Ultra High Speed HDMI cables are being used
• The selected EDID setting supports the desired resolution
• The source’s video output is configured correctly

The manual recommends HDMI cable lengths of approximately:

• Up to 10 feet for 8K
• Up to 26 feet for 4K 60Hz
• Up to 39 feet for 4K 24Hz
• Up to 49 feet for 1080p

Actual performance can vary with cable quality and the connected equipment.



Why Does My Screen Flicker or Lose Signal?



Flickering or intermittent video is commonly caused by HDMI bandwidth or handshake problems.

Try:

1. Use shorter HDMI cables.
2. Use certified Ultra High Speed HDMI cables.
3. Reduce the source from 8K or 4K 120Hz to 4K 60Hz.
4. Disable VRR temporarily.
5. Change the EDID setting.
6. Restart all connected equipment.
7. Test one source, one TV and one audio device at a time.

Once the basic connection is stable, reconnect additional audio outputs.



Does the JTD-3200 Support HDMI-CEC?



Yes. It supports CEC communication from the television to the source and CEC volume control from the television to a compatible eARC audio system.

CEC behavior can vary between manufacturers. Make sure CEC is enabled on:

• The television
• The soundbar or AV receiver
• The HDMI source, when applicable

CEC may not operate correctly through older cables or when multiple devices attempt to control the same system.



Can I Connect a Sonos Arc or Sonos Beam?



Yes. The JTD-3200 is designed to send eARC audio, including supported Dolby Atmos formats, from a compatible TV to eARC soundbars such as the Sonos Arc or Beam.

Connect the Sonos soundbar to SOUNDBAR eARC AUDIO OUT and enable eARC mode.

For Dolby Atmos:

• The source content must include Atmos
• The TV must support the required audio pass-through format
• eARC should be enabled
• The source audio format should be set to bitstream, pass-through or automatic
• The HDMI cables must support eARC



Can I Use the JTD-3200 Without an eARC TV?



Yes.

Connect the source to SOURCE IN, connect the television to HDTV OUT, and disable eARC mode. Audio will then be extracted directly from the HDMI source rather than returned from the television.

This is useful for older TVs that cannot send advanced audio through ARC.



Recommended Troubleshooting Order



When audio or video is not working, follow this sequence:



1. Confirm all cables are connected to the correct ports.
2. Check the front-panel input and output LEDs.
3. Determine whether eARC mode should be enabled or disabled.
4. Set the source to 1080p and PCM stereo for testing.
5. Set EDID to a compatible 2-channel mode.
6. Power-cycle the entire system.
7. Confirm basic video and stereo audio operation.
8. Increase the resolution and audio format one step at a time.
9. Replace HDMI cables if the signal becomes unstable.
10. Re-enable Dolby Atmos, 4K 120Hz, VRR or other advanced features after the basic setup works.



Frequently Asked Questions



Does the JTD-3200 convert Dolby Atmos to analog stereo?

The analog output requires PCM stereo. Set the source or TV to PCM 2-channel when using the L/R output.



Does optical support Dolby Atmos?

Standard optical audio does not support full lossless Dolby Atmos. Use the HDMI soundbar or amplifier output for advanced audio formats.



Should eARC mode always be turned on?

No. Turn it on when receiving audio back from the TV. Turn it off when extracting audio directly from the HDMI source.



Why does my TV remote not control the soundbar volume?

Confirm that eARC or ARC and HDMI-CEC are enabled on both devices. Also verify that the soundbar is connected to the JTD-3200’s eARC soundbar output.



Do I need HDMI 2.1 cables?

Ultra High Speed HDMI cables are strongly recommended for 4K 120Hz, 8K, eARC and other high-bandwidth HDMI 2.1 features.



Do I need to restart the source after changing EDID?

Yes. Restarting the source allows it to detect the newly selected video and audio capabilities.



The JTD-3200 provides a flexible way to combine modern HDMI 2.1 video with soundbars, AV receivers, optical systems and analog speakers. Most setup problems can be resolved by confirming the correct eARC mode, selecting a compatible audio format, adjusting EDID and using high-quality HDMI cables.

For the easiest troubleshooting process, begin with 1080p video and PCM stereo audio. After confirming that the system works, gradually enable 4K 120Hz, 8K, surround sound, Dolby Atmos, VRR and other advanced features.



Watch the JTD-3200 Setup and Troubleshooting Video



Prefer a visual walkthrough? Watch the video below for a step-by-step look at how to connect the JTD-3200, choose the correct eARC/ARC mode, configure EDID settings, and troubleshoot common audio or video issues.



Watch the JTD-3200 setup and troubleshooting video:
