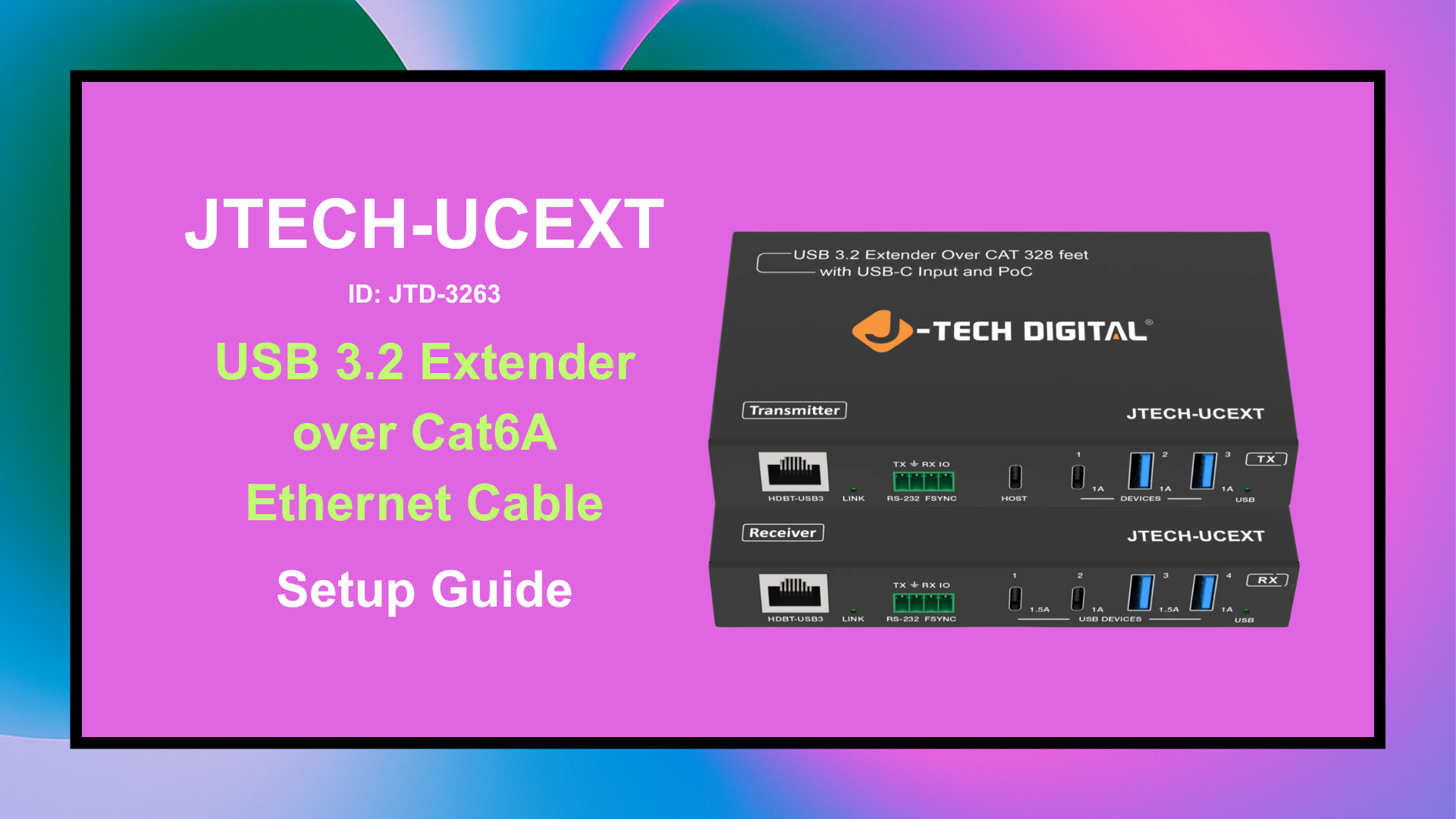

In modern AV installations, extending USB signals over long distances is a growing requirement, especially in conference rooms, control centers, and live production environments. The USB 3.2 Extender over Cat6A with USB-C Input (JTD-3263 / JTECH-UCEXT) is designed to solve exactly that.
This guide will walk you through features, setup, real-world applications, and best practices to help you deploy this USB extender efficiently.
What is a USB 3.2 Extender Over Cat6A?
A USB extender allows you to transmit USB signals beyond standard cable limitations. Instead of being limited to ~10 feet, this solution extends USB devices up to 328ft (100m) using a single Cat6A Ethernet cable.
This is ideal for:
- AV-over-IP environments
- Conference room USB device sharing
- PTZ camera control
- Remote workstation setups
- Industrial and control systems
The system supports USB 3.2 Gen 1 transmission up to 100m over Cat6A
What’s Included in the Box
- 1× Transmitter (TX)
- 1× Receiver (RX)
- 1× 24V Power Adapter
- Mounting accessories
- Phoenix connectors
- User manual
Ports & Hardware Overview
Transmitter (TX)
- HDBaseT USB port (to RX via Cat6A)
- USB-C Host port
- USB-A & USB-C device ports
- RS-232 & FSYNC control ports
- Power input
Receiver (RX)
- HDBaseT USB input
- Multiple USB device outputs
- USB-C + USB-A ports
- RS-232 & FSYNC
- Power input
Step-by-Step Setup Guide
Step 1: Connect the Host Device
- Plug your computer into the USB-C Host port on the transmitter
Step 2: Connect the Cat6A Cable
- Use a single Cat6A cable (up to 100m / 328ft)
- Connect TX → RX via the HDBaseT port
Step 3: Connect USB Devices
- Plug devices into the receiver unit:
- Keyboard / mouse
- USB camera
- microphone
- storage
Step 4: Power the System
- Connect one power adapter (TX or RX)
- PoC will power the other unit automatically
Step 5: Verify Connection
- LINK LED should be ON
- USB LED indicates signal type
- Devices should be recognized instantly
Application Example (Real-World Use Case)
The diagram on page 10 shows a typical deployment:
- Host PC connected to TX
- Cat6A cable running to RX
- USB devices (camera, mic, keyboard) connected remotely
Common AV Use Cases:
- Conference Rooms: Extend USB cameras + mics to table locations
- Control Rooms: Centralize PCs in racks while controlling remotely
- Digital Signage: Remote content control via USB
- Medical / Industrial: Isolate equipment from operators
Best Practices for Installers
Use Proper Cabling
- Always use Cat6A (shielded recommended)
- Avoid couplers or patch panels where possible
Keep Cable Runs Clean
- Avoid running parallel with high-voltage lines
- Maintain proper grounding
Power Strategy
- Use PoC to simplify installs
- Only one power supply needed
Device Compatibility
- Works best with:
- USB cameras
- HID devices
- storage devices
- High-power USB devices may require external power
Troubleshooting Tips
No Signal / No Connection
- Check Cat6A termination (T568B both ends)
- Verify LINK LED
USB Device Not Recognized
- Try different USB port
- Confirm device compatibility
Intermittent Performance
- Replace cable with short test run
- Avoid poor-quality patch cables
The USB 3.2 Extender over Cat6A with USB-C Input is a powerful, flexible solution for modern AV and IT environments. With 5Gbps speeds, 328ft range, and PoC capability, it simplifies complex USB extension challenges.
Whether you’re designing a conference room, control system, or AV-over-IP setup, this extender delivers the performance and reliability needed.
